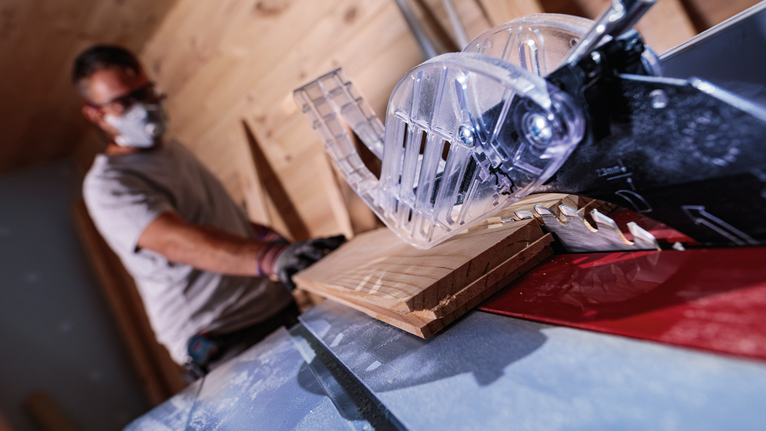

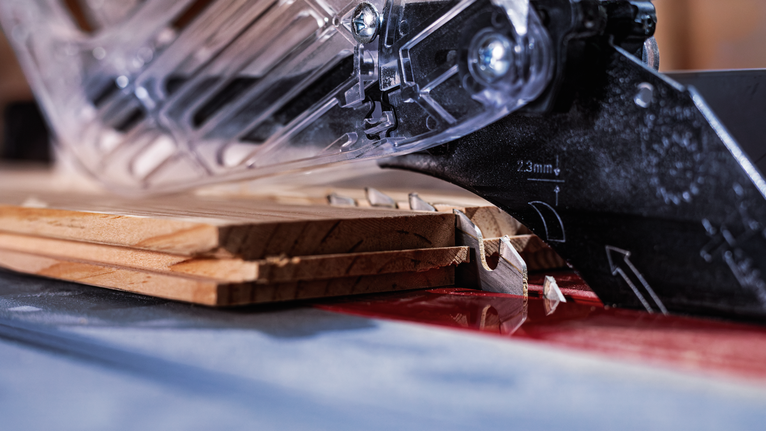

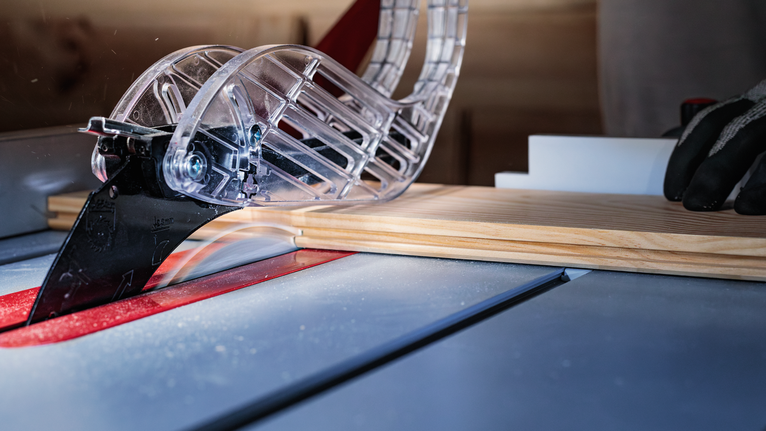

For table saws
Outer diameter mm
Width of cut (b1) mm
Number of teeth
Choose a pack size
Outer diameter mm 406
Width of cut (b1) mm 3.2
Number of teeth 30
Choose a pack size 1 Pcs
Currently not available online
Check availability on location Find a local dealerExpert for Wood Circular Saw Blade offers a long lifetime with high cutting performance in wood
Available product variations: 1
| Part number | Outer diameter mm | Bore size mm | Bore with reduction ring mm | Bore with reduction ring inch | Pack quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
| 2 608 643 037 | 406 | 30 | 25 / 20 | 1 | 1 Pcs | Find a local dealer |
out of products

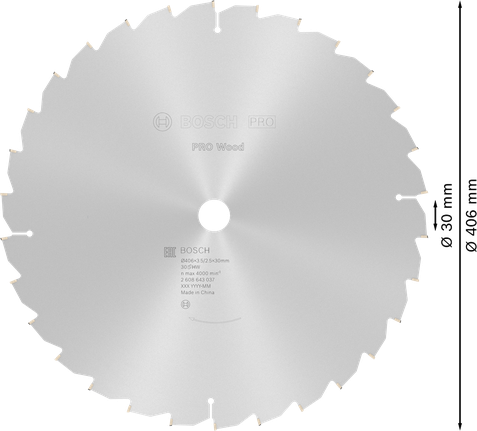

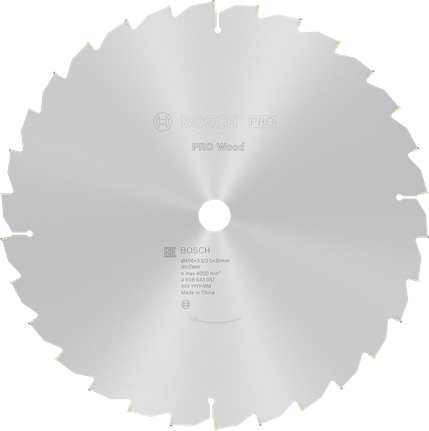

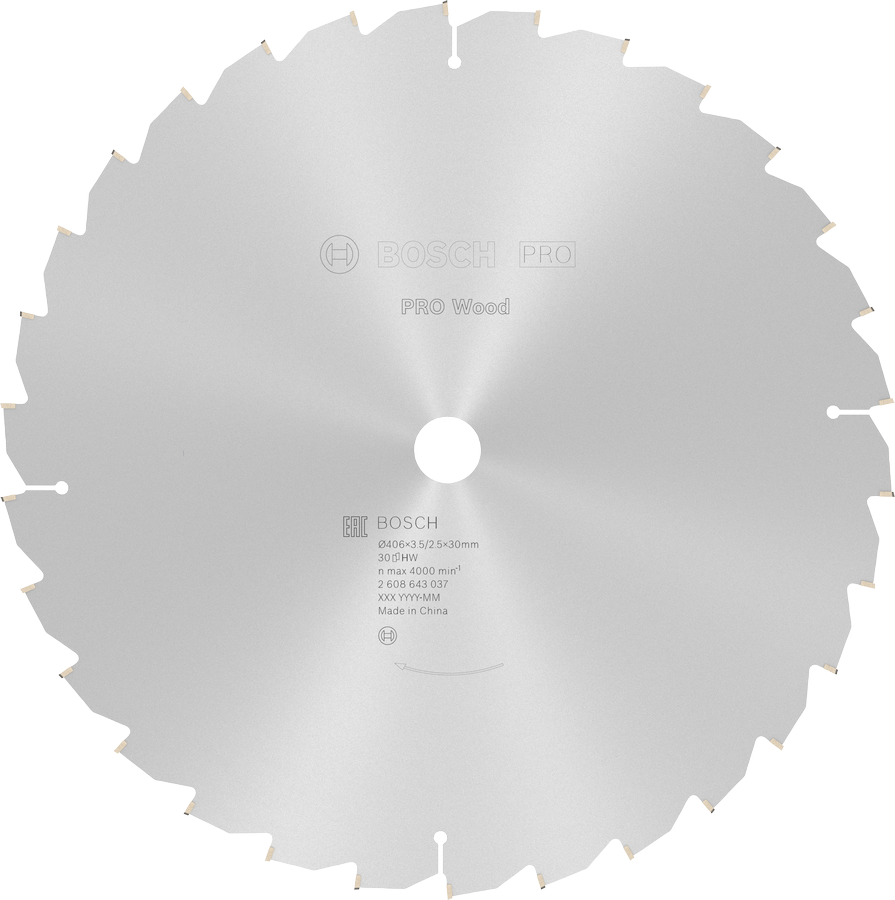

| Part number 2608643037 | |
|---|---|

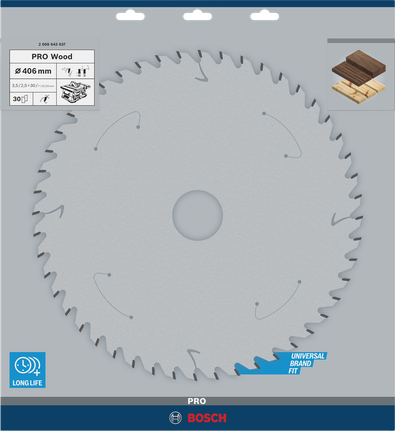

| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 406 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 20 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 30 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 4000 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
