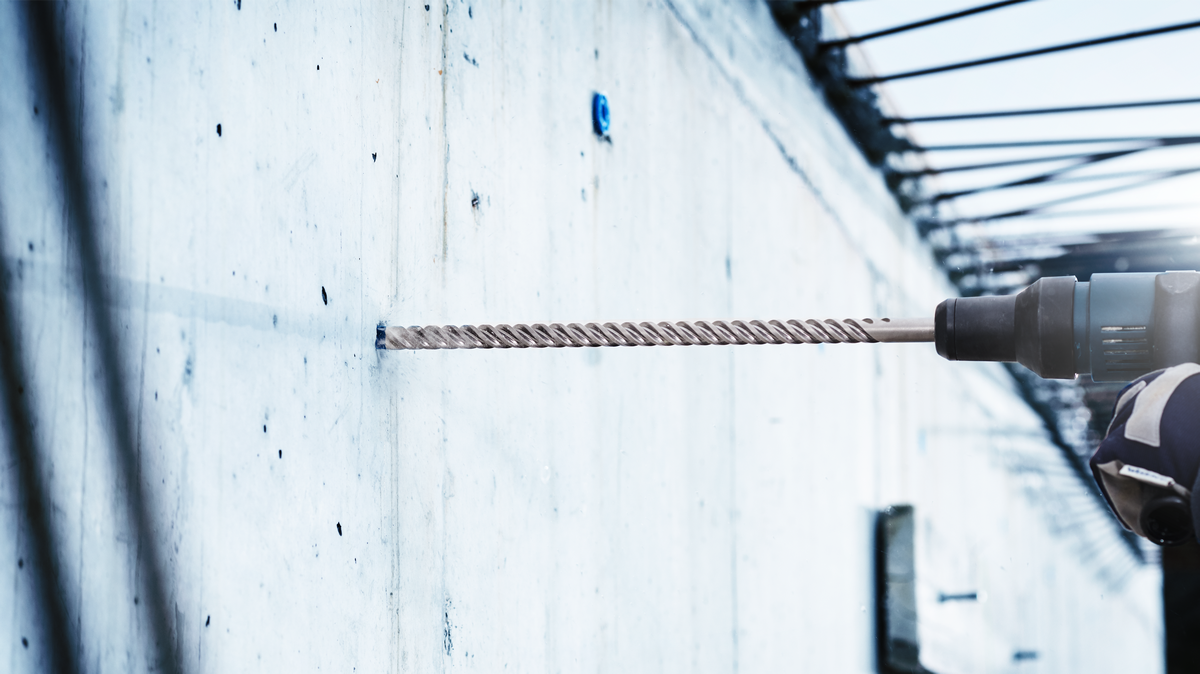

Person wearing safety equipment drills into a concrete wall with a rotary hammer.

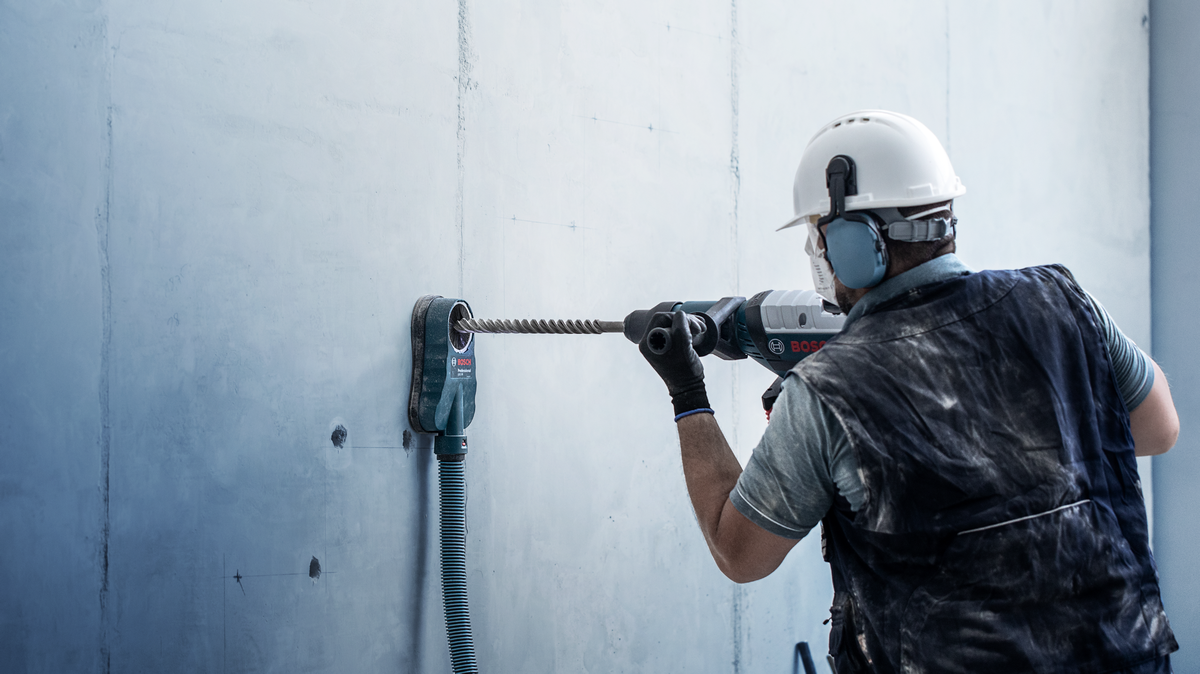

Person wearing safety equipment drills into a concrete wall with a heavy-duty tool.

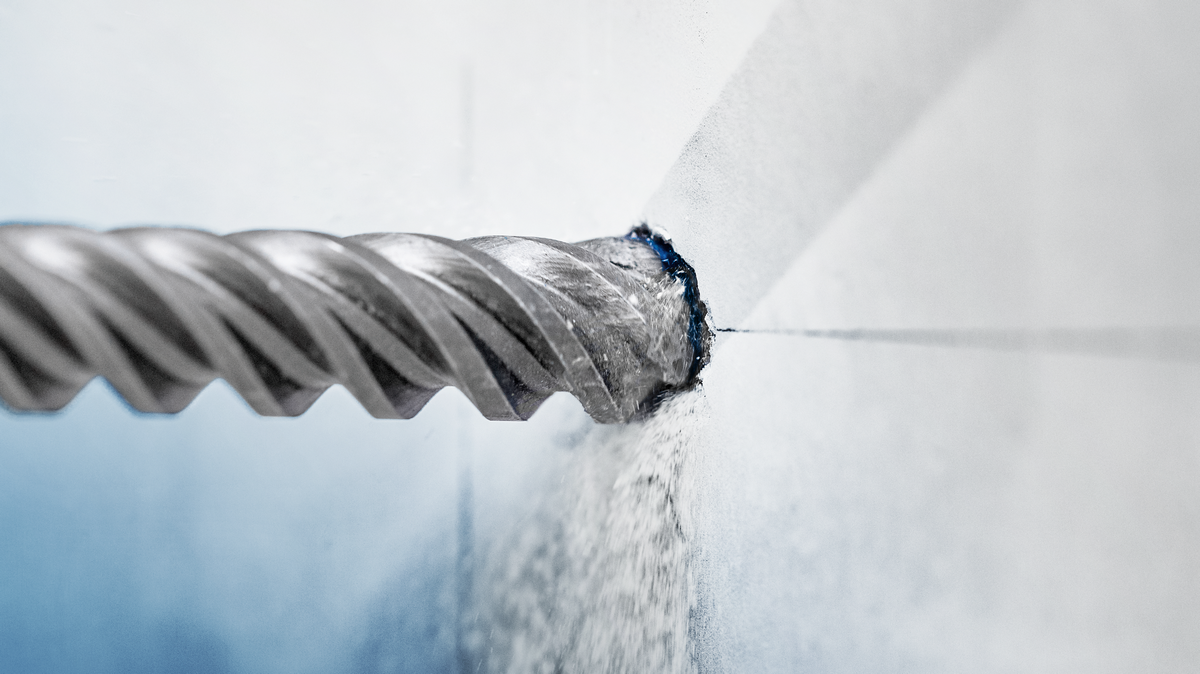

Drill bit boring into a concrete wall, creating dust.

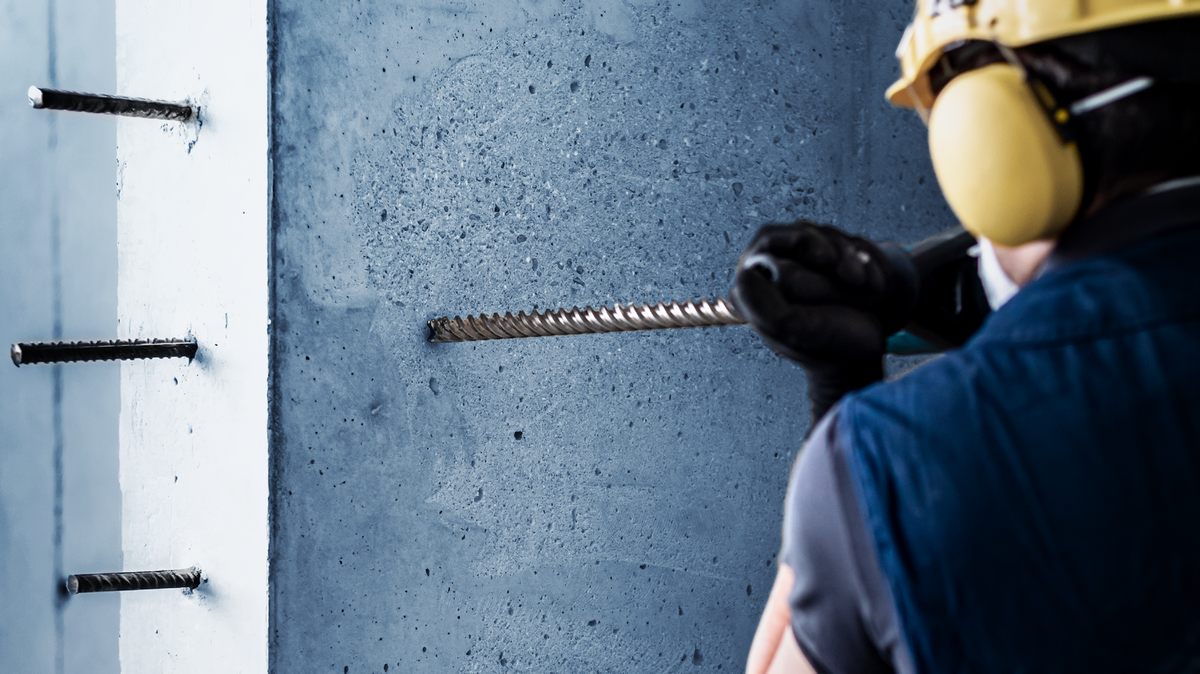

Person wearing safety equipment drills into concrete to install rebar.
Bosch EXPERT SDS max-8X Hammer Drill Bit 20mm for concrete.
Bosch EXPERT SDS max-8X hammer drill bit 20×200×320 mm 5-pc.
Bosch SDS max-8X hammer drill bit packaging.
Person wearing safety equipment drills into a concrete wall with a rotary hammer.
Person wearing safety equipment drills into a concrete wall with a heavy-duty tool.
Drill bit boring into a concrete wall, creating dust.
Person wearing safety equipment drills into concrete to install rebar.
EXPERT SDS max-8X

EXPERT SDS max-8X Hammer Drill Bit

For rotary hammer drills

Triple long life.

Lasts up to 3x longer than Bosch SDS max-4 Drill Bit

Test results
  • Long Life drilling reinforced concrete
  • Exceptionally durable drill bit tip with Bosch Carbide Technology

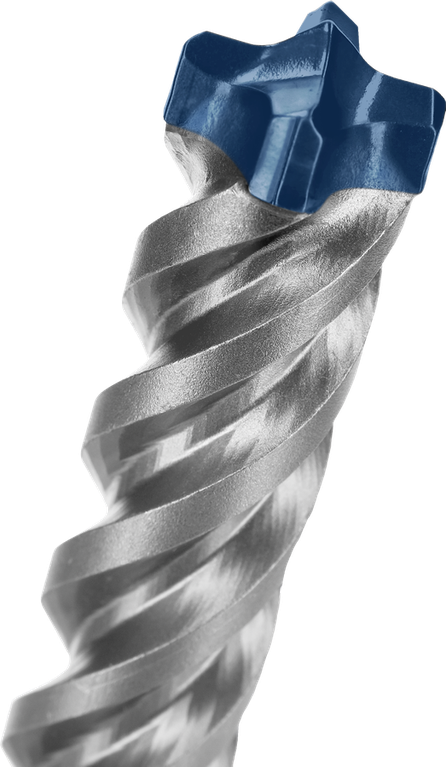

  • Punch through reinforced concrete with a 4-cutter full carbide head
  • Highly resistant drill tip connection thanks to Bosch’s special welding process
  • Fits all SDS max rotary hammers
View more View less

Materials

Soft stone.
Hard stone.
Concrete.
Reinforced concrete.
Concrete building block.

Select options

Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 10 options

Working length mm 4 options

Total length mm 6 options

Choose a pack size 1 Pcs

Available product options (18)
EXPERT SDS max-8X Hammer Drill Bit

Long Life drilling reinforced concrete

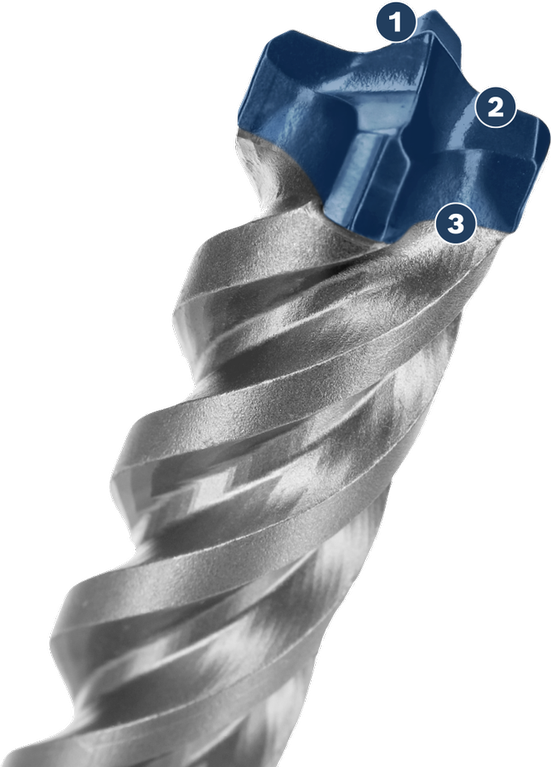

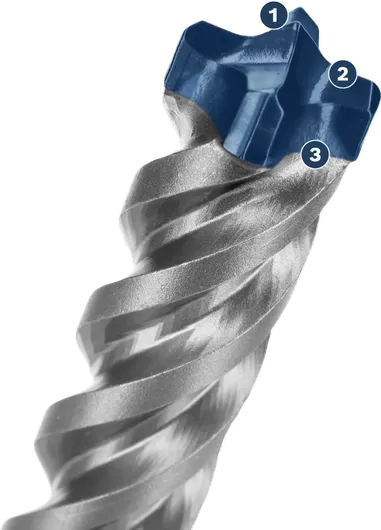

Bosch SDS plus-7X drill bit with carbide tip.
  • 1

    Exceptionally durable drill bit tip with Bosch Carbide Technology

  • 2

    Punch through reinforced concrete with a 4-cutter full carbide head

  • 3

    Highly resistant drill tip connection thanks to Bosch’s special welding process

Carbide technology.
EXPERT
Advantage

Drill Concrete Like an Expert

EXPERT SDS max-8X for Long Life Drilling Reinforced Concrete

Drilling through reinforced concrete is a tough job and it has traditionally taken its toll on hammer drill bits. Even 4-cutters wear out fast, resulting in downtime changing accessories and fetching supplies. The Full Carbide Head on the EXPERT SDS max-8X is an advanced 4-cutter design made from a single piece of the toughest metal: It doesn’t jam and presents no weakness on impact.

View more
Person wearing safety equipment drills into a concrete wall with a rotary hammer.

Product Options

Available product options: 18

Expand Part number Diameter (D) mm Working length mm Total length mm Pack quantity Price Availability
2 608 900 201 12.00 200 340 1 Pcs Find a local dealer
2 608 900 202 12.00 400 540 1 Pcs Find a local dealer
2 608 900 207 14.00 200 340 1 Pcs Find a local dealer
2 608 900 208 14.00 400 540 1 Pcs Find a local dealer
2 608 900 214 16.00 200 340 1 Pcs Find a local dealer
2 608 900 215 16.00 400 540 1 Pcs Find a local dealer
2 608 900 221 18.00 200 340 1 Pcs Find a local dealer
2 608 900 222 18.00 400 540 1 Pcs Find a local dealer
2 608 900 229 20.00 400 520 1 Pcs Find a local dealer
2 608 900 236 22.00 800 920 1 Pcs Find a local dealer
2 608 900 240 25.00 200 320 1 Pcs Find a local dealer
2 608 900 241 25.00 400 520 1 Pcs Find a local dealer
2 608 900 247 28.00 200 320 1 Pcs Find a local dealer
2 608 900 248 28.00 400 520 1 Pcs Find a local dealer
2 608 900 249 28.00 600 720 1 Pcs Find a local dealer
2 608 900 252 30.00 200 320 1 Pcs Find a local dealer
2 608 900 253 30.00 400 520 1 Pcs Find a local dealer
2 608 900 257 32.00 800 920 1 Pcs Find a local dealer
