Rotation lasers

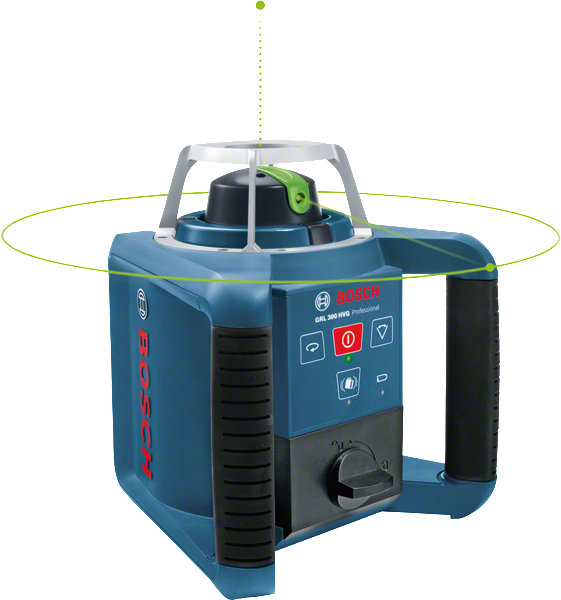

GRL 300 HVG Set Professional

Rotation Laser

GRL 300 HVG Set

Outstanding visibility for indoor applications

  • Green laser line: up to four times better visibility than a red line
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Functions & key features

 Shock warning function gives an alarm if tool is moved
Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Sweep mode for better visibility
Working range up to 100 m

Your Selection

  • with 2 x battery (LR20), receiver
Show variant
73,320.00 PHP
Recommended retail price including VAT

Currently not available online

Find a local dealer

with 2 x battery (LR20), receiver 0 601 061 703
73,320.00 PHP
Recommended retail price including VAT

GRL 300 HVG Set Professional

Your Selection

GRL 300 HVG Set
with 2 x battery (LR20), receiver

Order number: 0 601 061 703

73,320.00 PHP
Recommended retail price including VAT
Find a local dealer

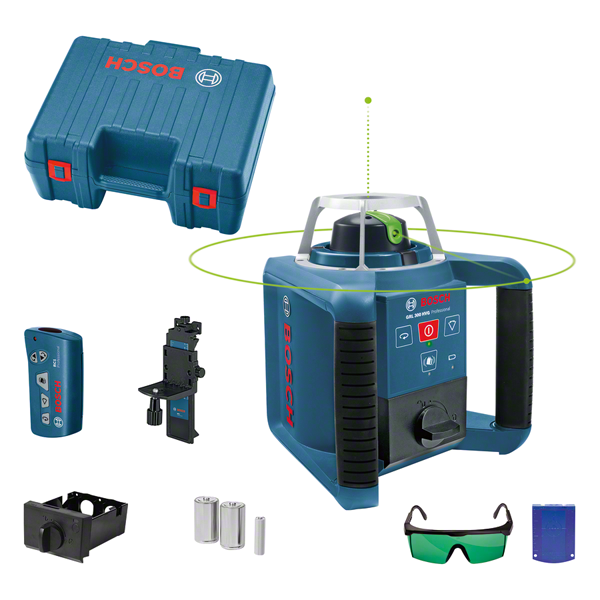

Included in this variant

  • Bracket
    Order number: 1 608 M00 05A
  • Universal mount WM 4 Professional
    Order number: 0 601 092 400
  • Laser target (blue) (spare part number 1 608 M00 05K)
  • 1 x 1.5 V LR6 battery (AA)

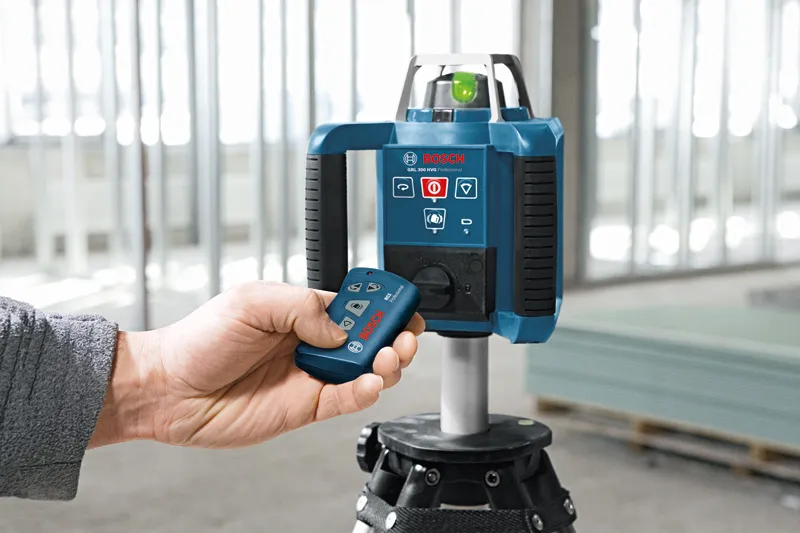

  • Remote control RC1 Professional
    Order number: 0 601 069 900
  • 2 x 1.5 V LR20 battery (D)
  • Laser receiver LR 1G Professional
    Order number: 0 601 069 700
  • Laser viewing glasses (green) (spare part number 1 608 M00 05J)
  • 1 x 9 V block battery (6LR61)

Technical data

Additional data

Working range with receiver, value 300 m
Dust and splash protection IP 54
Working range, value 100 m
Laser diode 532 nm, < 5 mW
Operating temperature 0 – 40 °C
Storage temperature -20 – 70 °C
Laser class 3R
Working range 100 m
Working range with receiver 300 m (Diameter)
Working range without receiver 100 m (Diameter)
Accuracy ± 3.0 mm at 30 m* (*plus use-dependent deviation)
Self-levelling range ± 5° (8%)
Levelling time 15 s
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.5 V LR20 (D)
Tripod thread 5/8"
Weight, approx. 1.8 kg
Colour of laser line green
Compatible laser receivers LR 1G
Slope function no
