New

EXPERT

EXPERT EXBA18V-40

Battery Pack

Order number 1.600.A03.6Z1

Up to 2x the maximum power of the Professional GBA 18V 4.0Ah¹

High power: Up to 2000W maximum power for demanding applications (internal test lab data, instantaneous maximum power with fully charged, new battery)
High-power tabless cells: Less inner resistance for high power and outstanding energy density
Long lifetime: Robust design, reinforced housing and outstanding heat management with COOLPACK 2.0 and tabless cell technology
One battery fits all: Compatible with the Bosch Professional 18V System and the multi-brand battery alliance AMPShare

¹ vs. the Professional GBA 18V 4.0Ah, internal test lab data, instantaneous maximum power, fully charged new battery*

Select a variant

Find a local dealer

Your Selected Variant

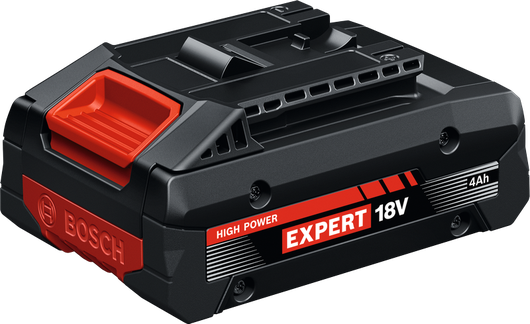

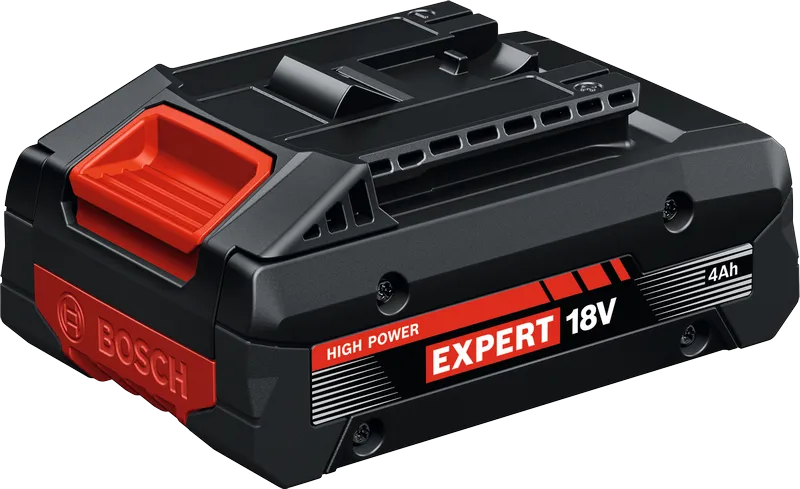

Bosch EXBA18V-40 battery pack, 18V 4Ah capacity.

Your Selected Variant

in cardboard box 1 600 A03 6Z1

Find a local dealer

Select a variant

Your Selection

Included in this variant

Cardboard box

Select Variant

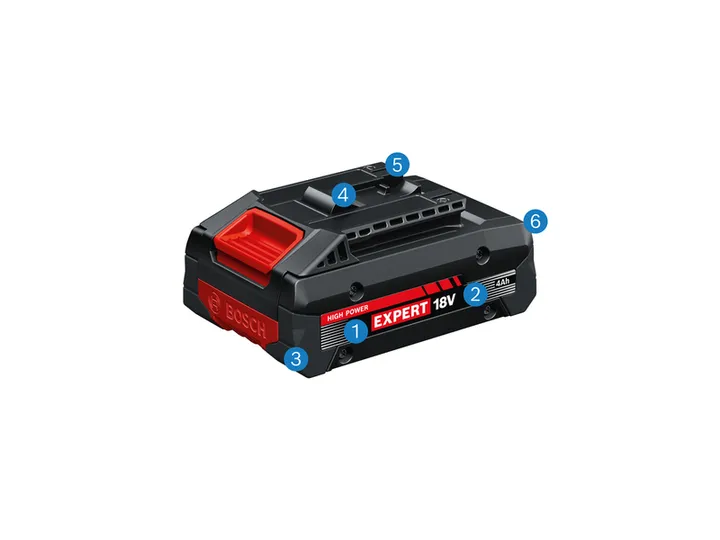

Product highlights

1

High Power: Up to 2000W maximum power for demanding applications

2

High-Power Tabless Cells: Less inner resistance for high power and outstanding energy density

3

Long Lifetime: Robust design, reinforced housing and outstanding heat management with COOLPACK 2.0 and tabless cell technology

4

One battery fits all: Compatible with the Bosch Professional 18V System and the multi-brand battery alliance AMPShare

5

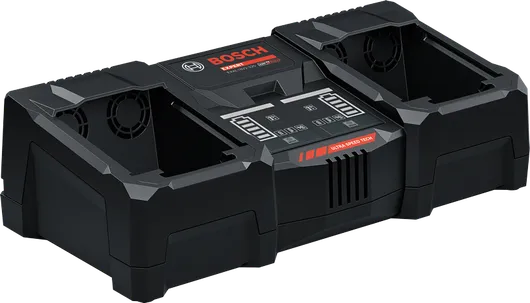

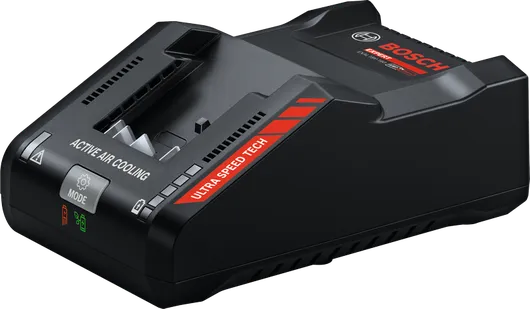

FlexTemp Charging: Extended charging temperature range from -10°C to +55°C battery temperature when using EXPERT EXAL18V2-320 and EXPERT EXAL18V-160

6

Easy Control: 5-LED indicator displaying state of charge with remaining capacity and defect risk detection

Further functions & features

Product Highlights

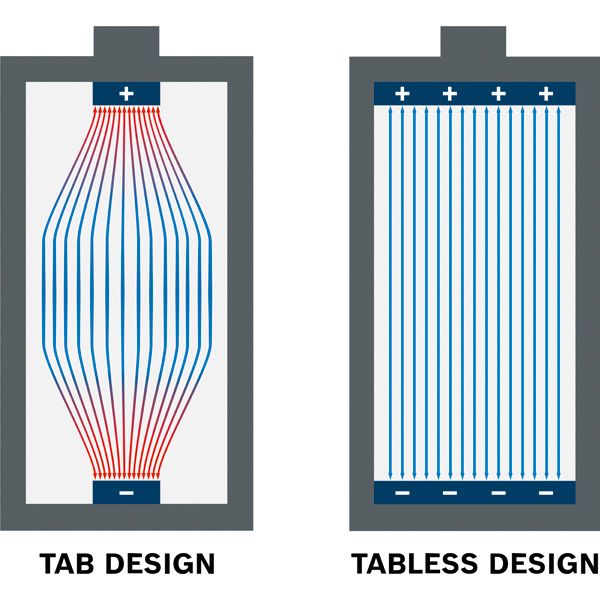

The EXBA18V-40 high-power Expert battery delivers up to 2000W maximum power for demanding applications (based on internal lab testing; instantaneous maximum power with a fully charged new battery) in the most compact design. It uses advanced tabless cell technology whereas conventional batteries come with multi-tab cells that use only two tabs as current paths. This creates a bottleneck that adds to the resistance of the battery. Tabless cell technology opens this bottleneck. Instead of only two current paths, it offers countless parallel current paths. The result: less resistance, less heat, impressive power and an outstanding energy density. With its reinforced new robust housing, excellent thermal management from COOLPACK 2.0 and tabless cell technology, the EXBA18V-40 has a long lifetime and is therefore ideal for professionals who rely on durability and performance.

Equipment & Application

The EXBA18V-40 has an extended charging temperature range from -10°C to +55°C battery temperature when used with the EXAL18V2-320 or the EXAL18V-160. It features a 5-LED indicator that displays state of charge, remaining capacity and defect risk detection. Compatible with the Bosch Professional 18V System and the multi-brand battery alliance AMPShare.

Additional Information

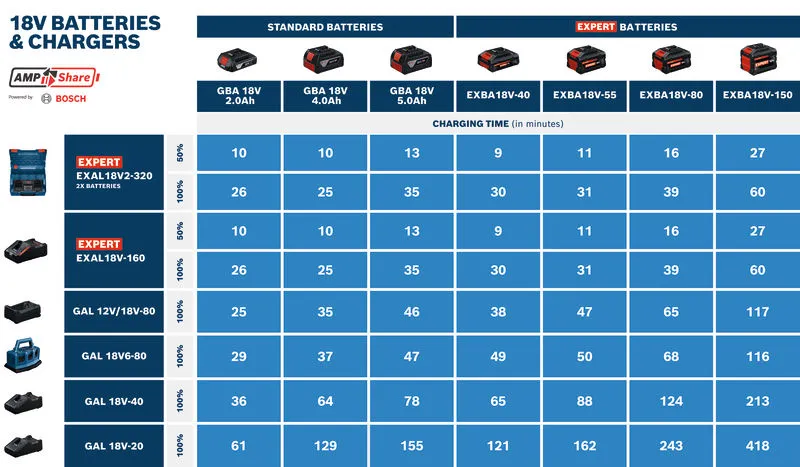

It can be fully charged in just 30 minutes with the EXAL18V2-320 or EXAL18V-160, and weighs only 605g.

Fits to EXPERT EXBA18V-40

GAL 18V6-80

Charger

Continuous charging for non-stop work – multi-bay charger with 6 battery interfaces

GAL 12V/18V-80

Charger

12V and 18V fast charger

Technical data

Additional data
Battery voltage	18.0 V
Weight	0.605 kg
Battery capacity	4 Ah
Battery dimensions (width x length x height)	80 x 121 x 51 mm

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Instruction manual | GBA 18V 12.0Ah M ... 8V 4.0Ah M-E,EXBA 18V-40 (PDF 1.4 MB) Product data sheet | EXBA18V-40 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

1607A351MD

Product name

EXBA18V-40

Description

Battery Pack

Go to spare part Browse spare parts catalogue

This may also interest you

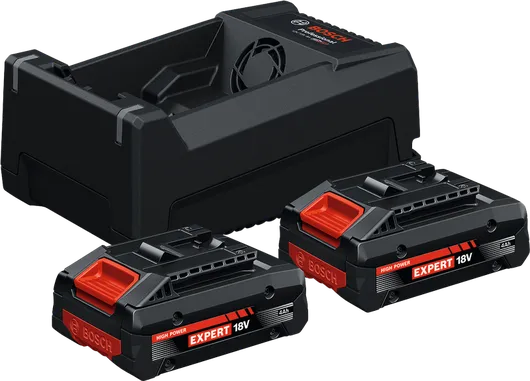

2x EXBA18V-40 + GAL 12V/18V-80
