Technical data
| Additional data | |
|---|---|
| Rated input power* | 710 W |
| Impact energy* | 2.3 J |
| Impact rate at rated speed | 0 – 4,400 bpm |
| Rated speed | 0 – 1,000 rpm |
| Weight | 3.6 kg |
| Weight without/with dust extraction unit | 2.9 / 3.6 kg |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 23 mm |
| Opt. appl. range concrete, hammer drill bits | 4 – 12 mm |
| Drilling dia. concrete, dust extraction unit | 4 – 16 mm |
| Max. drilling diameter masonry, core cutters | 68 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 32 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 15.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.
Advantages
The most compact solution for dust-free drilling
- Convenient working due to particularly compact design
- Integrated, removable dust extraction unit for clean, dust-free working
- Convenient working even overhead due to particularly compact design
Functions

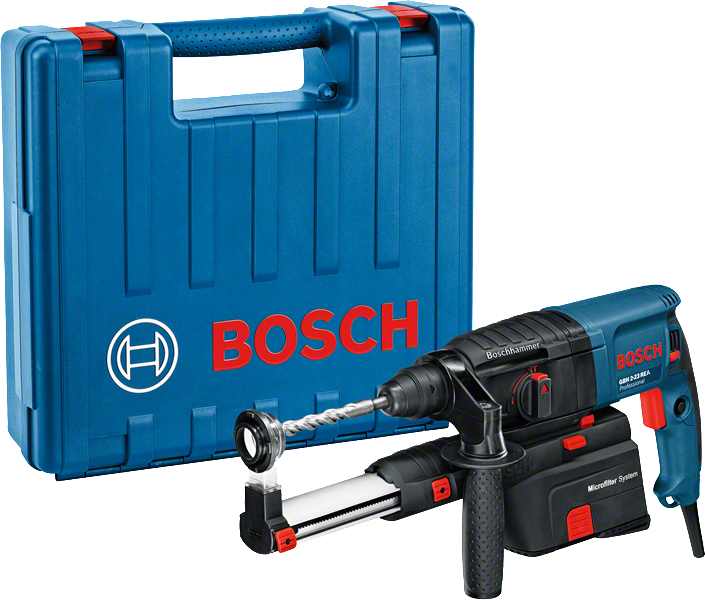

What’s Included in this Package
in carrying case with accessory set
Order number:
0 611 250 500
- Machine cloth
- Carrying case
- Dust extraction unit
- Auxiliary handle (spare part number 1 619 P06 104)
- 5 x seal ring (spare part number 1 619 P04 548)
17.04 PHP
Recommended retail price excluding VAT.
