Technical data
| Additional data | |
|---|---|
| Rated input power* | 800 W |
| Impact energy* | 2.7 J |
| Impact rate at rated speed | 0 – 4,000 bpm |
| Rated speed | 0 – 900 rpm |
| Weight | 2.8 kg |

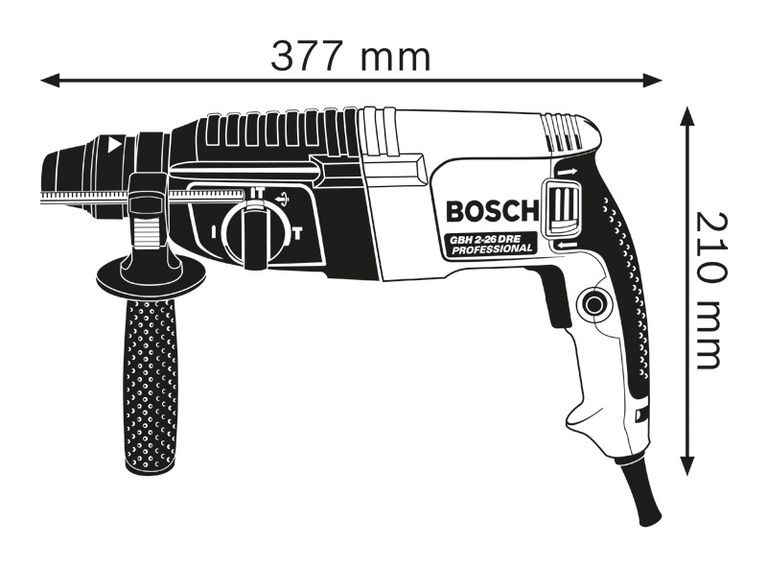

| Tool dimensions (width) | 83 mm |
| Tool dimensions (length) | 377 mm |
| Tool dimensions (height) | 210 mm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 26 mm |
| Opt. appl. range concrete, hammer drill bits | 8 – 16 mm |
| Max. drilling diameter masonry, core cutters | 68 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 17.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 9.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.
Advantages
Faster than a speeding bullet – The all-rounder for daily use
- Superior drilling rate in the 2 kg hammer class
- Rotation stop for chiselling
- Impact stop for drilling in wood and steel
Functions
What’s Included in this Package
in carrying case with accessory set
Order number:
0 611 253 704
- Carrying case 2 605 438 098
- Depth stop 210 mm 1 613 001 010
- Auxiliary handle 2 602 025 141
14,800.00 PHP
Recommended retail price excluding VAT.
