Technical data
| Additional data | |
|---|---|
| Rated input power* | 850 W |
| Impact energy* | 3.2 J |
| Impact rate at rated speed | 0 – 4,000 bpm |
| Rated speed | 0 – 900 rpm |
| Weight | 3.1 kg |

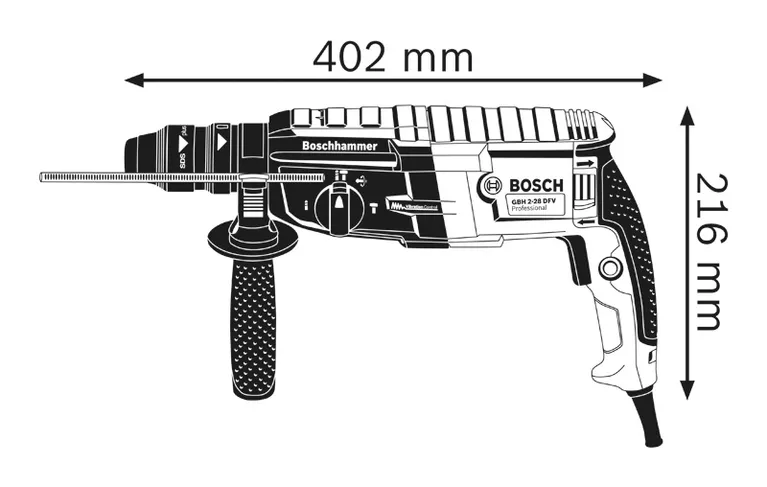

| Tool dimensions (length) | 402 mm |
| Tool dimensions (height) | 216 mm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 28 mm |
| Opt. appl. range concrete, hammer drill bits | 8 – 16 mm |
| Drilling diameter in concrete with core cutters | 68 mm |
| Max. drilling diameter masonry, core cutters | 68 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Drilling dia. concrete, dust extraction unit | 4 – 16 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 11 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 11 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.
Advantages
The most powerful tool in its class
- Highest drilling rate and highest chiselling performance in its class
- 25% longer lifetime than other rotary hammers in its class for more efficiency
- 27% less vibration than the predecessor model due to active vibration damping
Functions
What’s Included in this Package
in carrying case with Auxiliary handle
Order number:
0 611 267 2K1
- Auxiliary handle
- Carrying case
- Depth gauge 1 613 001 009
19,260.00 PHP
Recommended retail price excluding VAT.
