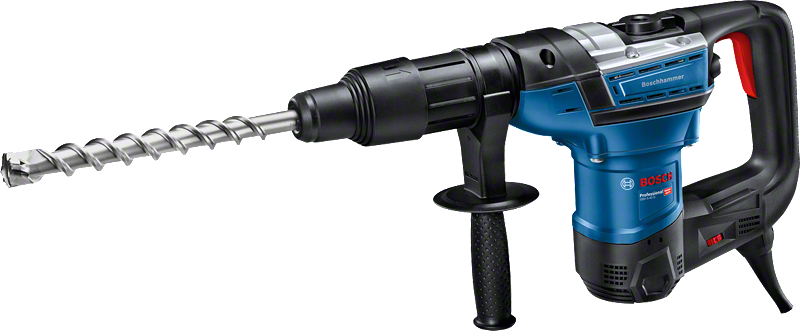

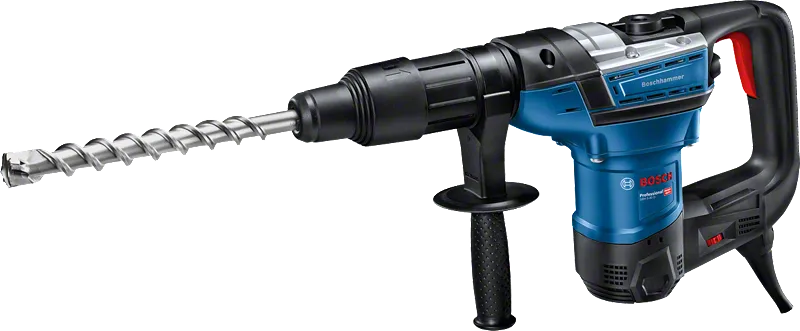

Rotary Hammer with SDS max GBH 5-40 D Professional

The powerful hammer with fastest drilling progress in its class

37,050.00 PHP Recommended retail price excluding VAT.

Technical data
Additional data
Rated input power* 1,100 W
Impact energy* 8.5 J
Impact rate at rated speed 1,500 – 2,900 bpm
Rated speed 170 – 340 rpm
Weight 6.8 kg
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits* 12 – 40 mm
Drilling dia. concrete, breakthrough drill bits 45 – 55 mm
Drilling diameter in concrete with core cutters 40 – 90 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter concrete 40 mm
Opt. appl. range concrete, hammer drill bits 18 – 32 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 11.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.

Advantages

The powerful hammer with fastest drilling progress in its class

  • Fastest drilling progress – 30% faster than its predecessor
  • High material removal rate – 50% more impact energy than existing GBH 5-38 D
  • Perfect handling – well balanced tool for all applications

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case with Grease tube (spare part number 1 615 430 010)
in carrying case with Grease tube (spare part number 1 615 430 010)
Order number: 0 611 269 0K0
  • Carrying case
  • Cleaning cloth 1 619 200 413
  • Grease tube (spare part number 1 615 430 010)
  • Auxiliary handle 1 619 P07 778
37,050.00 PHP Recommended retail price excluding VAT.

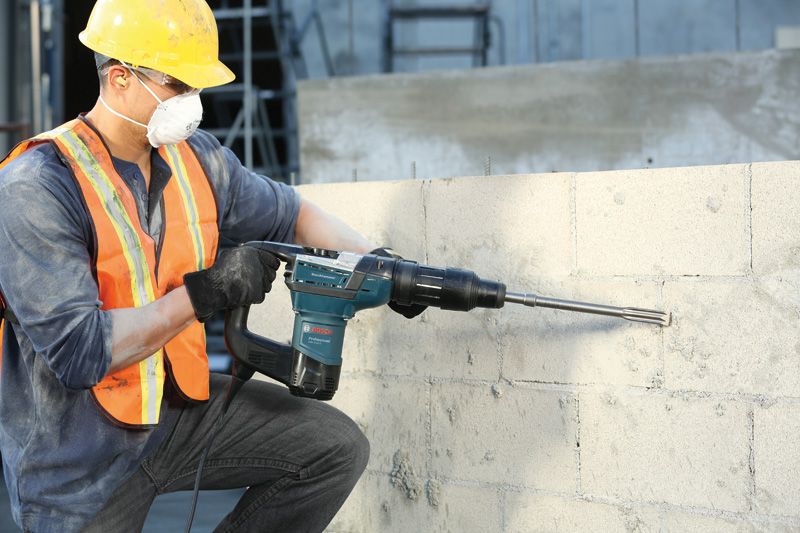

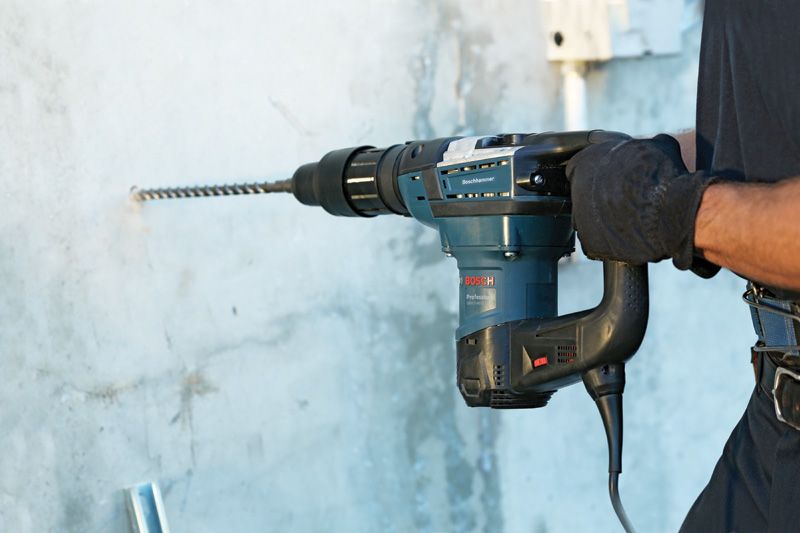

The GBH 5-40 D in action!
