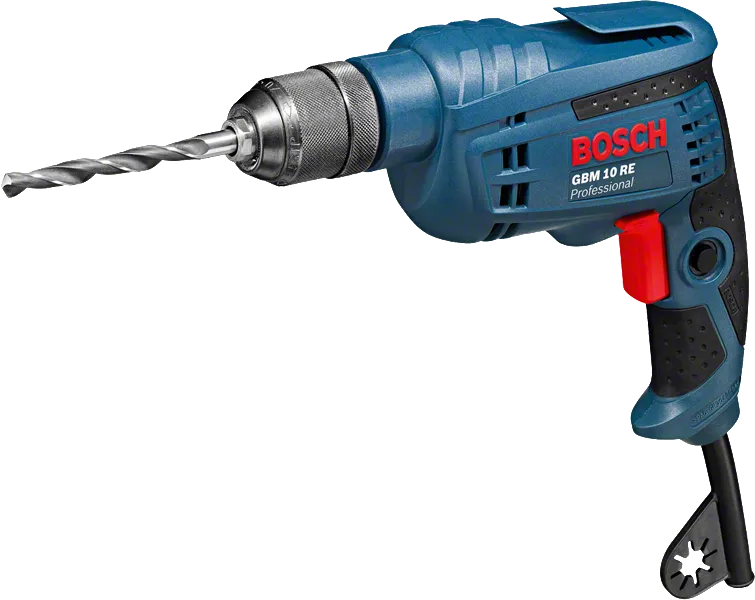

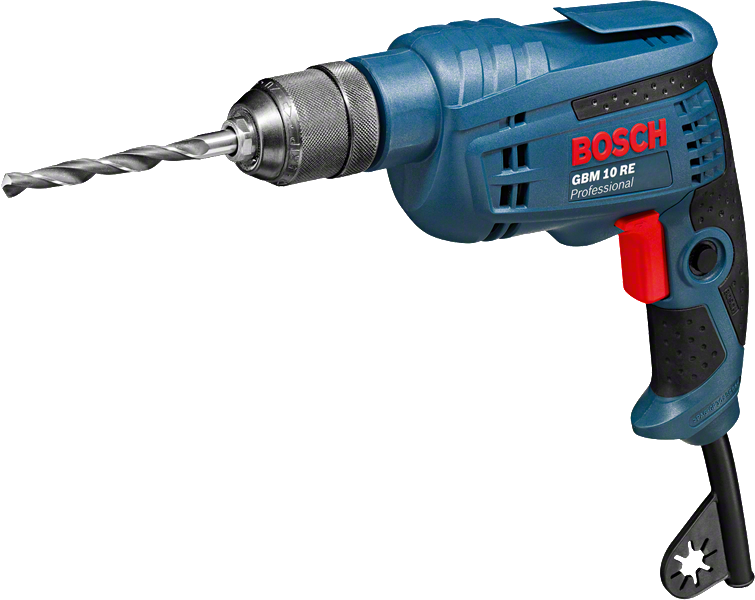

Drill GBM 10 RE Professional
The powerful and compact tool
3,570.00 PHP Recommended retail price including VAT.
Technical data
| Additional data | |
|---|---|
| Rated input power | 600 W |
| Weight | 1.7 kg |
| Rated speed | 1,676 rpm |
| Rated torque | 20.0 Nm |
| Chuck capacity, min./max. | 1 – 10 mm |
| No-load speed, 1st gear | 0 – 2,600 rpm |
| Power output | 360 W |
| Drill spindle connecting thread | 3/8" |

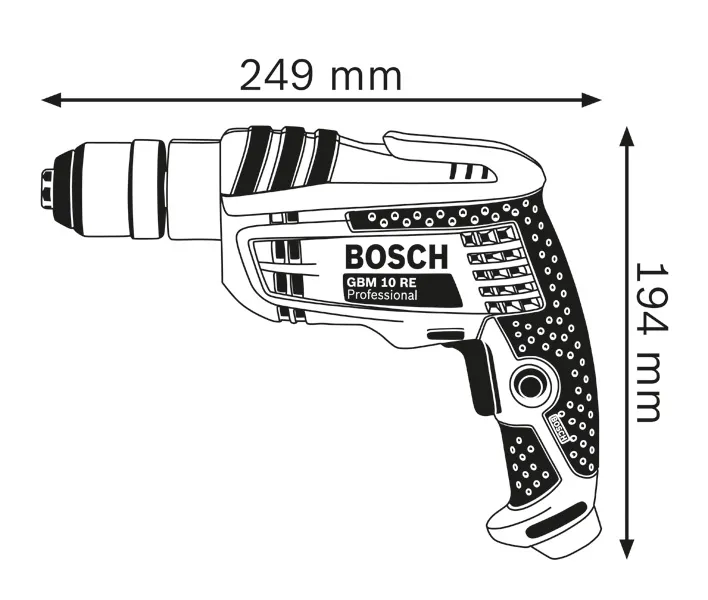

| Tool dimensions (width) | 68 mm |
| Tool dimensions (length) | 267 mm |
| Tool dimensions (height) | 194 mm |
| Drilling range | |
|---|---|
| Drilling diameter in aluminium | 10 mm |
| Drilling diameter in wood | 25 mm |
| Drilling diameter in steel | 10 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 4.8 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.8 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
The powerful and compact tool
- Powerful 600 W motor, ideal for drilling holes up to 10 mm in diameter in metal
- Drill spindle fixed in bearing for high precision
- Compact design and low weight for optimum handling in medium-duty drilling applications
Functions
What’s Included in this Package
GBM 10 RE Professional
Order number:
0 601 473 5K0
- Keyed chuck 10 mm 2 608 571 078
3,570.00 PHP
Recommended retail price including VAT.
