Technical data
| Additional data | |
|---|---|
| Working range* | 15 m |
| Accuracy* | ± 0.3 mm/m |
| Laser diode | Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW |
| Operating temperature, from | -10 °C |
| Operating temperature, up to | 50 °C |
| Operating temperature | -10 – 50 °C |
| Storage temperature, from | -20 °C |
| Storage temperature, up to | 70 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range of laser points, max. | 10 m (top), 10 m (bottom) |
| Self-levelling range* | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 3 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h in cross line and point mode, 8 h in cross line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.49 kg |
| Colour of laser line | green |
| Projection | 2 lines / 2 points |
| Plumb point accuracy | ± 0.7 mm/m |
* Highlighted Data
Advantages

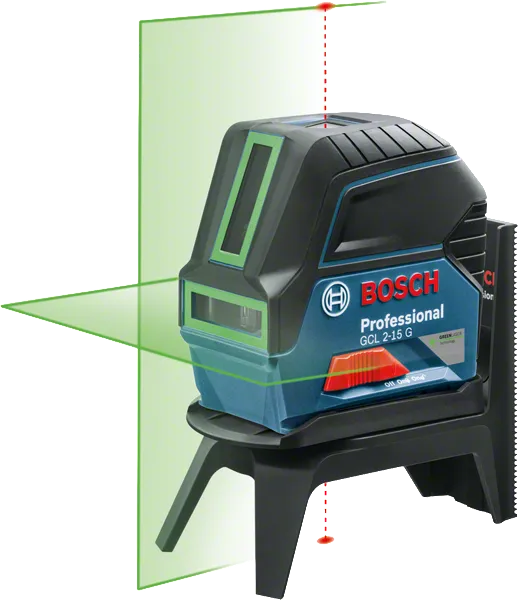

Four times better visibility thanks to green laser lines
- Green horizontal and vertical lines for maximal visibility

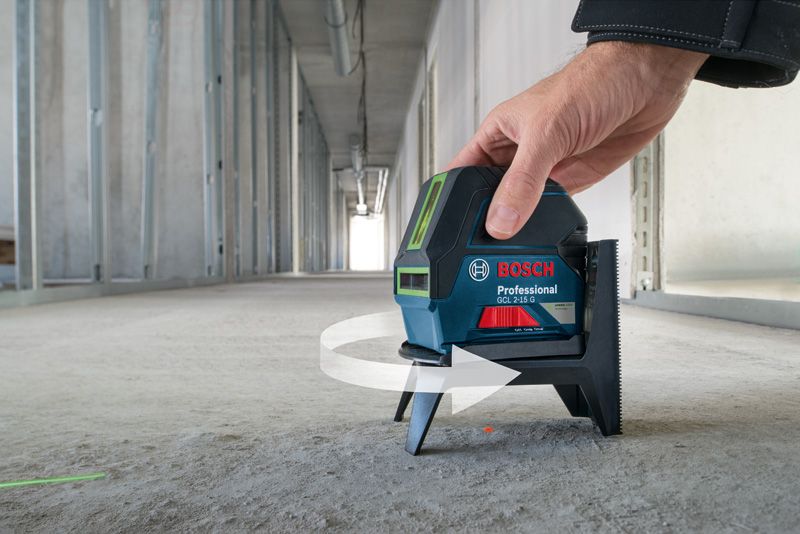

- Multifunctional rotating mount for easy alignment of the laser lines around the plumb points

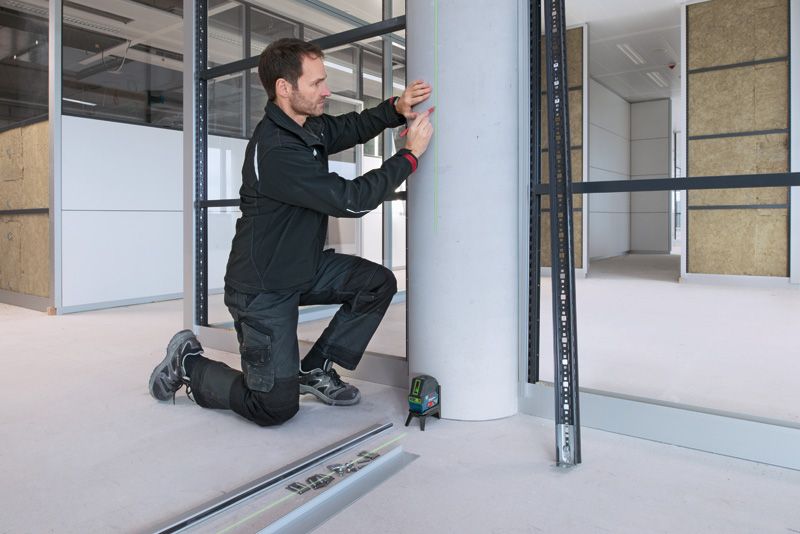

- Red plumb points for precise transfer application
Functions

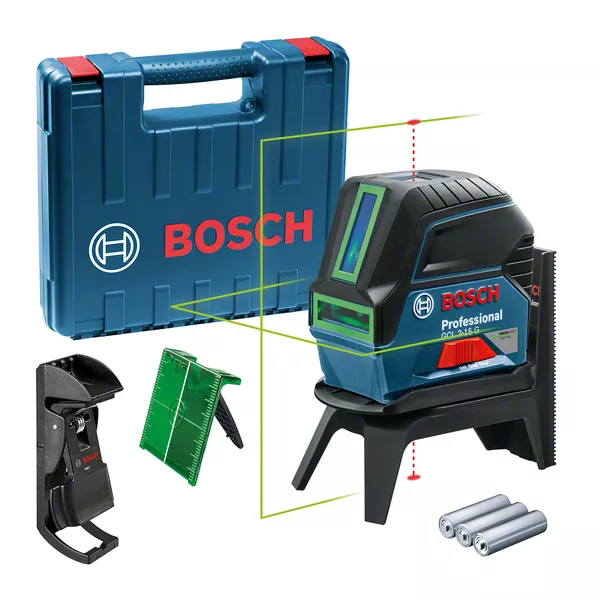

What’s Included in this Package
in carrying case with 3 x battery (AA), accessory set
Order number:
0 601 066 J00
- 1/2 L-BOXX inlay for tool 1 608 M00 C1S
- Carrying case
- Laser target plate
- Rotating mount RM 1 Professional 0 601 092 600
- 3 x 1.5 V LR6 battery (AA)
