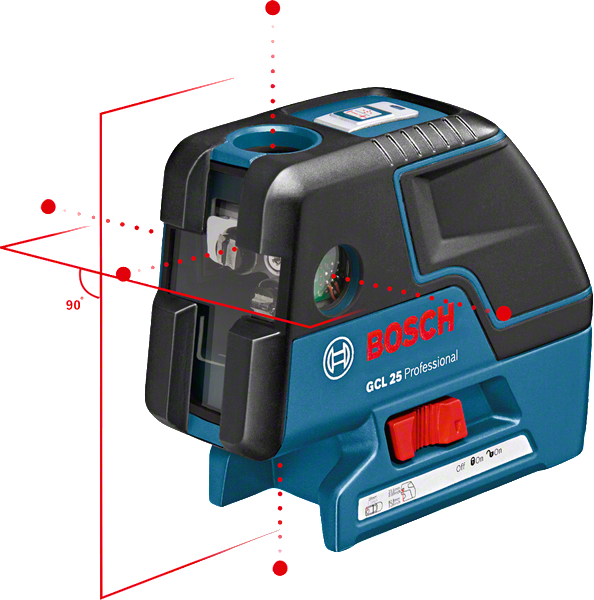

GCL 25 Professional

Combi Laser

The easy solution for all levelling and transfer jobs over short distances

  • Extremely versatile: cross line laser and five-point laser in one
  • Easy to operate using intuitive user interface
  • Compact and ergonomic design

Functions & key features

Line configuration
Laser class 2
IP54 dust and splash water protection
Tripod mount for 5/8" and 1/4" tripod thread
Power supply 4 x AA battery

Your Selection

  • with 4 x battery (AA), laser target plate
Show variant
19,770.00 PHP
Recommended retail price including VAT
Find a local dealer

with 4 x battery (AA), laser target plate 0 601 066 B00
19,770.00 PHP
Recommended retail price including VAT

GCL 25 Professional

Your Selection

GCL 25
with 4 x battery (AA), laser target plate

Order number: 0 601 066 B00

19,770.00 PHP
Recommended retail price including VAT
Find a local dealer

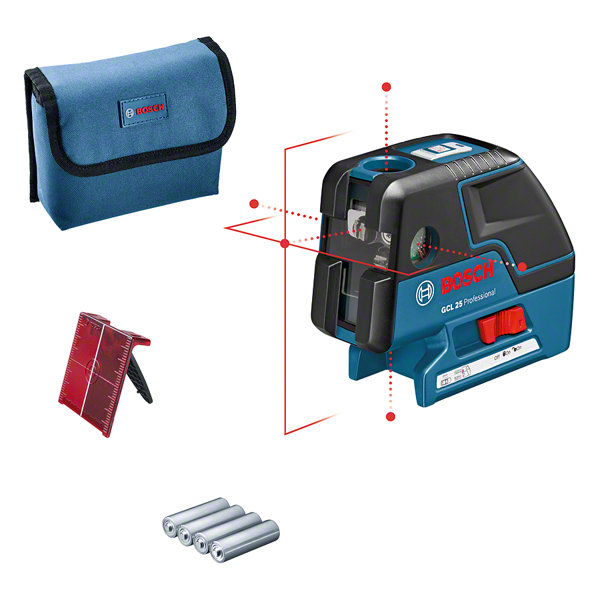

Included in this variant

  • Protective Bag
  • L-BOXX inlay for tool
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate

Technical data

Additional data

Dust and splash protection
IP 54
Working range
10 m
Accuracy
Laser lines and horizontal point beams: ± 0.3 mm/m* ; Vertical point beams: ± 0.5 mm/m* (*plus use-dependent deviation), Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Tripod thread
1/4", 5/8"
Colour of laser line
red
Laser diode
630 – 650 nm, < 1mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range of laser points, max.
10 m (top), 5 m (bottom), 30 m horizontal
Self-levelling range
± 4°
Levelling time
4 s
Power supply
4 x 1.5 V LR6 (AA)
Operating time (max.)
12 h in line and point mode, 24 h in 5-point mode, 30 h in line mode
Weight, approx.
0.6 kg
Color of plumb points
red
Projection
2 lines / 5 points
Plumb point accuracy
± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value
10 m
GCL 25

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products
