Mitre saws & work benches
GCM 12 GDL
GCM 12 GDL

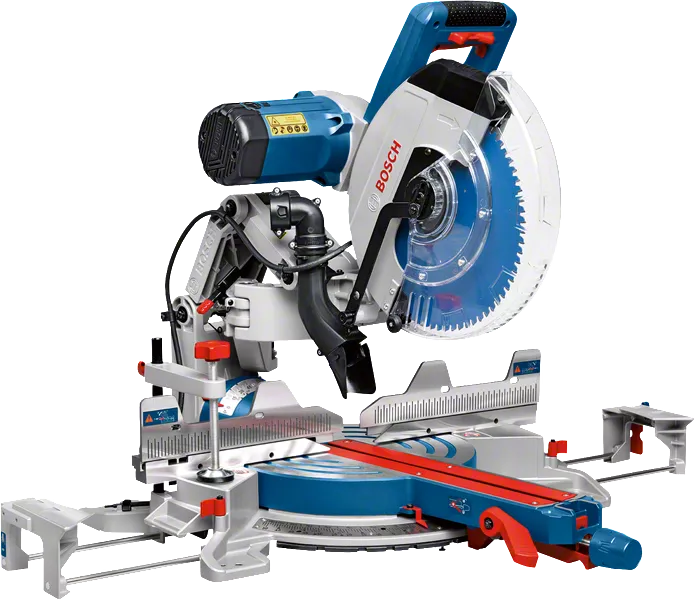

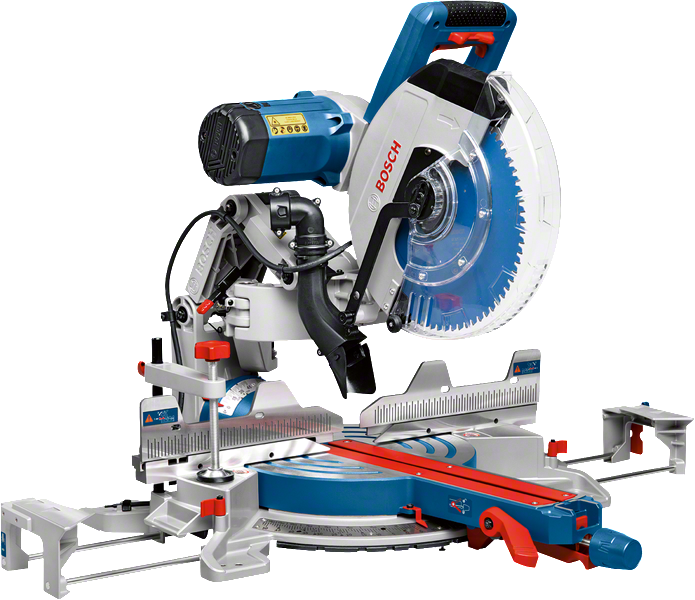

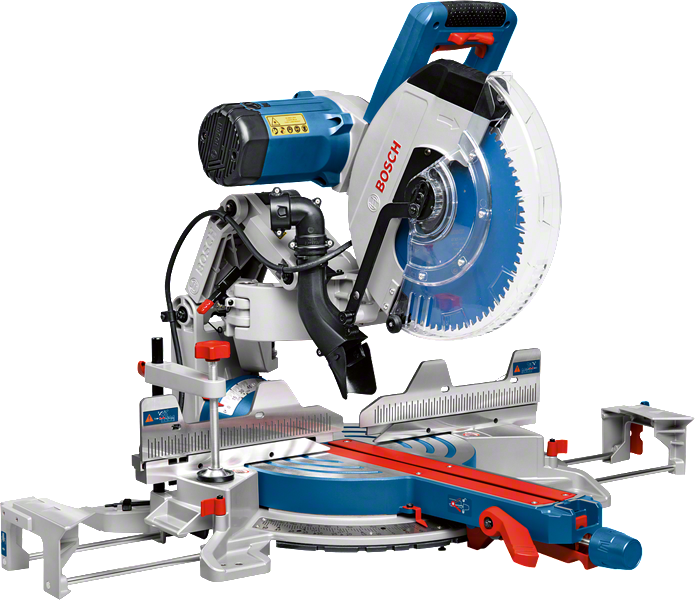

GCM 12 GDL Professional

Mitre Saw

Unmatched cutting smoothness and durable precision

  • Extreme cutting smoothness because of innovative and maintenance-free gliding system
  • Integrated dual line laser supports accurate cuts
  • High vertical and horizontal cutting capacity

Functions & key features

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Laser class 2 Laser class for measuring tools.
Easy disc / tool change thanks to spindle lock

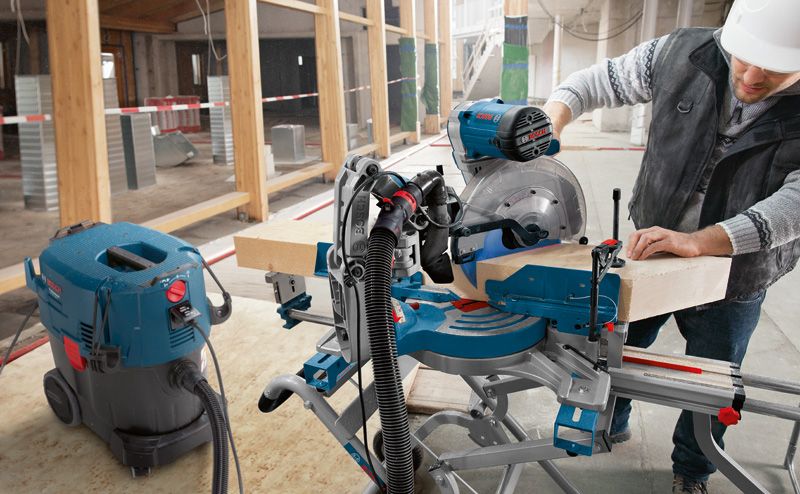

Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster Harmful dust is extracted immediately: Protects your health Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.

Your Selection

  • with collet
Show variant
54,740.00 PHP Recommended retail price including VAT

Currently not available online

Check availability on location
Find a local dealer
with collet 0 601 B23 600
54,740.00 PHP Recommended retail price including VAT
Find a local dealer

GCM 12 GDL Professional

Your Selection

with collet

Order number: 0 601 B23 600

54,740.00 PHP

Recommended retail price including VAT

Find a local dealer

Included in this variant

  • Internal hexagon (spare part number 1 609 B00 256)
  • 1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72
    Order number: 2 608 642 531
  • Clamp
    Order number: 1 609 B06 203
  • Collet (spare part number 1 609 B02 585)
  • Insert plate (spare part number 1 609 B02 375)
Your selection

Technical data

Additional data
Rated input power 1,800 W
Saw blade diameter 305 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R
Saw blade bore diameter 30 mm
Cutting capacity, 0° 104 x 341 mm
Cutting capacity, 45° mitre 104 x 240 mm
Cutting capacity, 45° bevel 51 x 341 mm

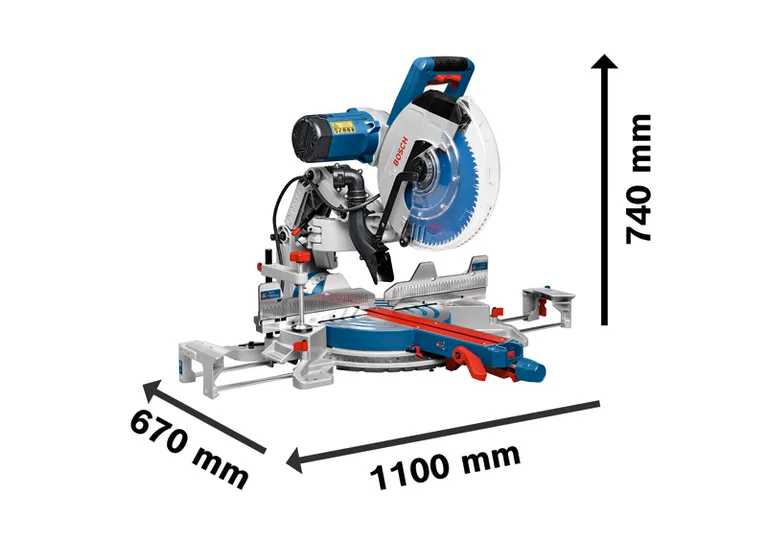

Tool dimensions (width x length x height) 670 x1100 x740 mm
No-load speed 4,000 rpm
Weight 32.1 kg
Show more

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601M23600

Product name

GCM 12 GDL

Description

Mitre Saw

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GCM 12 GDL (PDF 15.9 MB) Insert | Herstellergarantie (EU),Manufacturer's guarantee (EU) (PDF 0.3 MB) Instruction manual | GCM 12 GDL (Online version)
