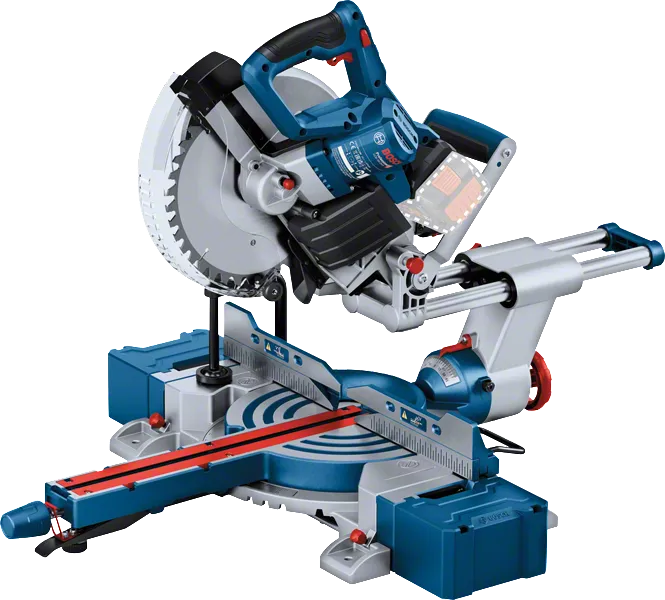

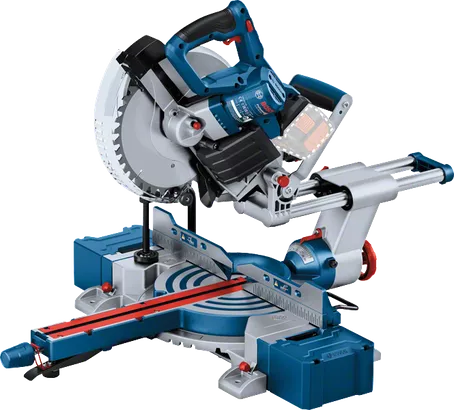

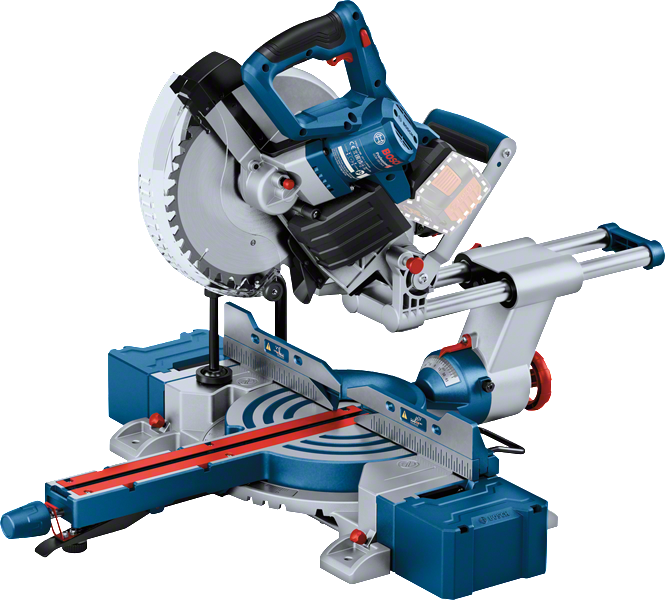

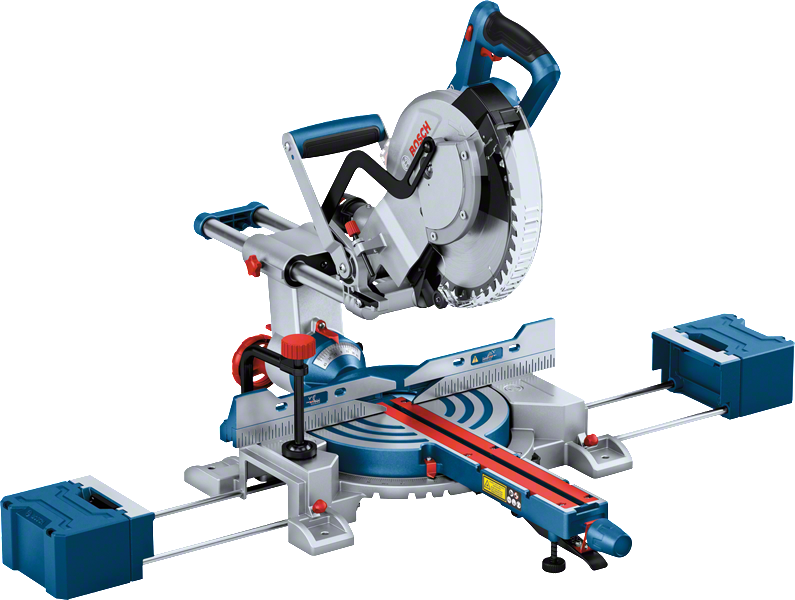

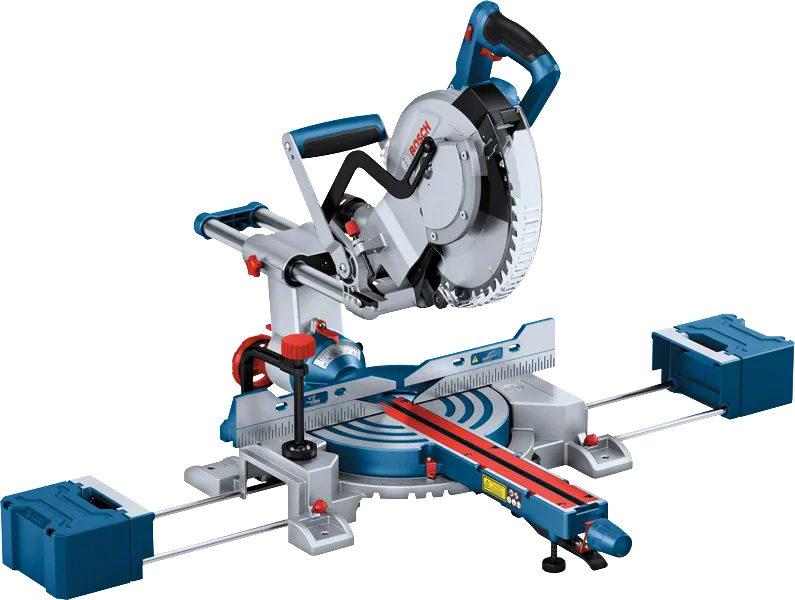

GCM 18V-254 D Professional

Cordless Mitre Saw BITURBO

GCM 18V-254 D
GCM 18V-254 D
GCM 18V-254 D

Cuts up to 90 x 305 mm: mobile and lightweight cordless miter saw with high ergonomics

  • Strong corded cutting performance due to BITURBO Brushless drive train

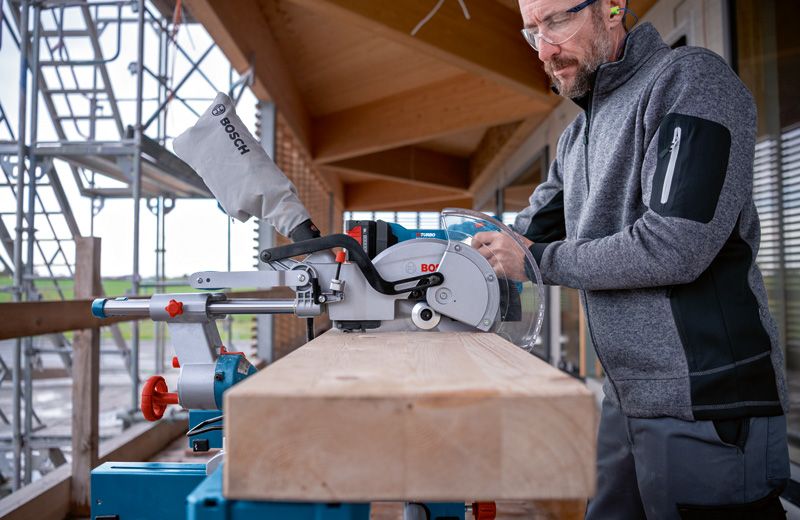

  • Even long materials can be easily controlled during cutting

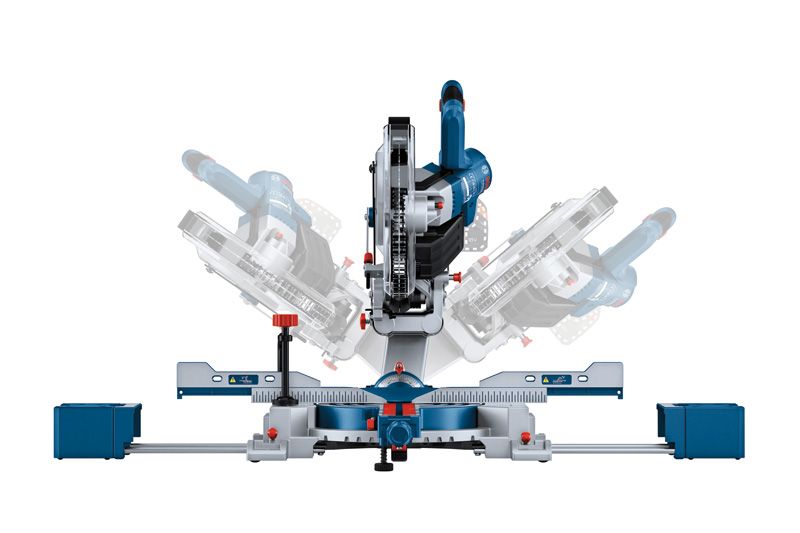

  • More comfort and flexibility for demanding cuts due to dual bevel function

Functions & key features

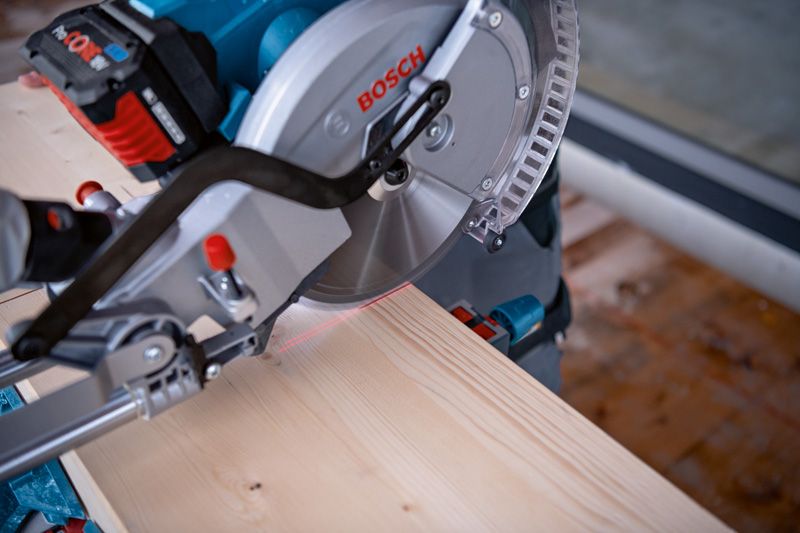

 Precision Dual Laser; precise and intuitive thanks to laser projection of cutting line left and right of the saw blade
 Illuminating of the work area
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Show variant

Currently not available online

Find a local dealer

GCM 18V-254 D Professional 0 601 B51 180

GCM 18V-254 D Professional

Your Selection

GCM 18V-254 D

Order number: 0 601 B51 180

Find a local dealer

Included in this variant

  • 1 x circular saw blade, Expert for Wood, 254 x 25.4 x 2.5 mm, 80
    Order number: 2 608 643 003

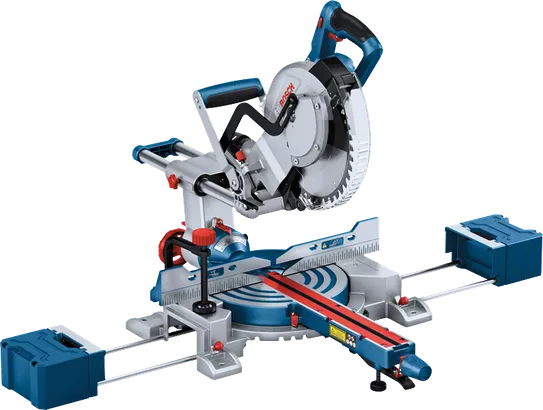

  • 2 x Workpiece support (flexibly pluggable)
    Order number: 1 609 B07 675
  • Dust bag
    Order number: 2 608 000 841

Technical data

Additional data

Saw blade diameter 254 mm
Mitre setting 48 ° L / 48 ° R
Bevel setting 47 ° L / 47 ° R
Battery voltage 18.0 V
Weight 17.7 kg
Cutting capacity, 0° 90 x 305 mm
Cutting capacity, 45° mitre 90 x 215 mm
Cutting capacity, 45° bevel 55 x 305 mm

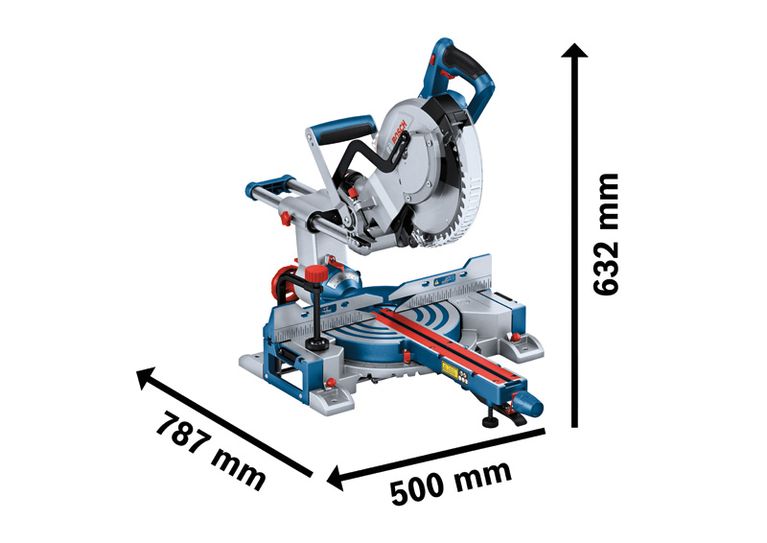

Tool dimensions (width x length x height) 500 x 787 x 632 mm
No-load speed 4,500 rpm
Saw blade bore diameter 25.4 mm

The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.

GCM 18V-254 D

* You can find more information about the deviations in the following link: Technical features of products

GCM 18V-254 D Professional: Further information

Product Highlights

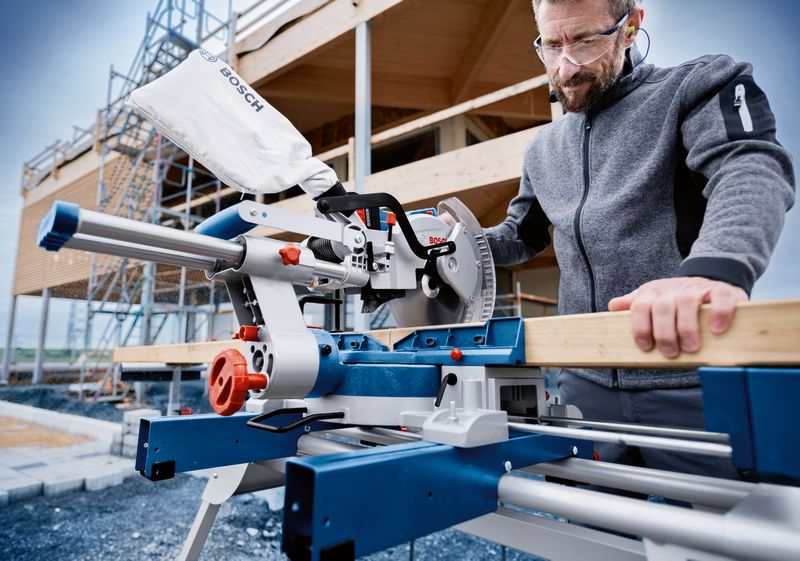

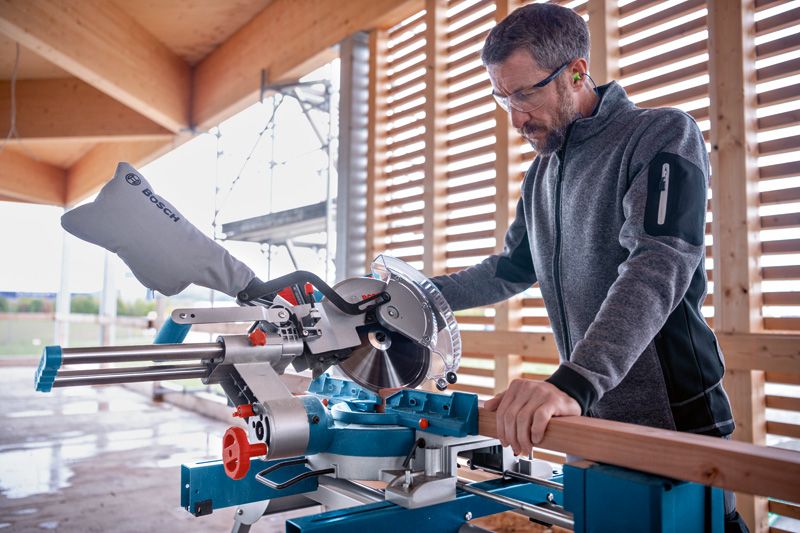

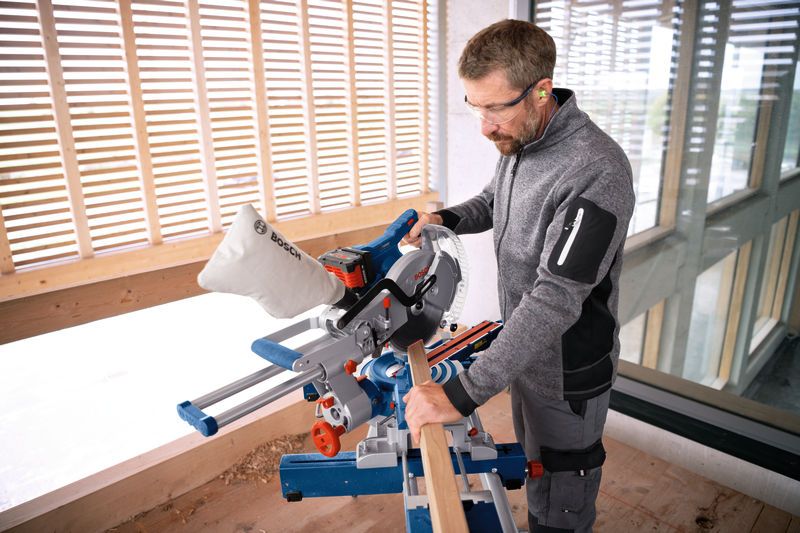

Its BITURBO Brushless drive train combined with its ProCORE18V battery provides the cordless GCM 18V-254 D Professional with strong cutting performance. The detachable workpiece supports, and long table extensions allow, the mobile miter saw to easily control long materials during cutting. Even challenging cuts are done with more comfort and flexibility thanks to the dual bevel setting with the ergonomic bevel lock wheel.

Equipment & Application

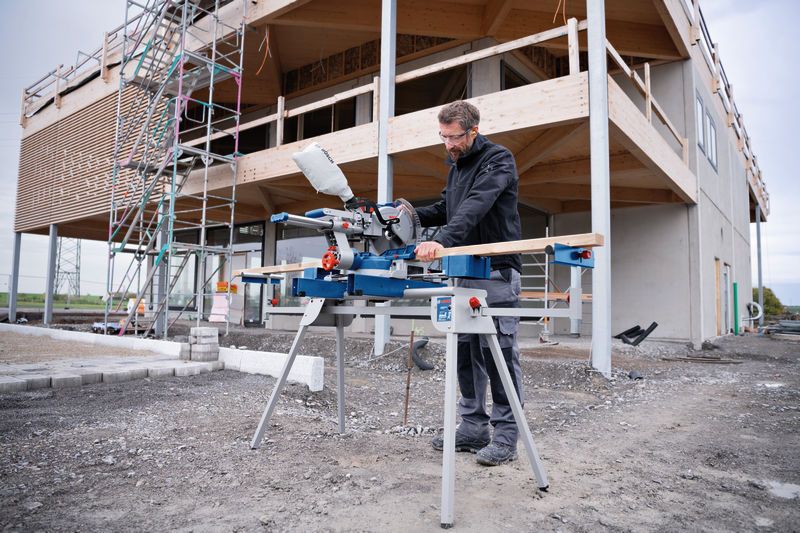

Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic are the ideal application areas of the GCM 18V‐254 D Professional. It is compatible with all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah. For sufficient runtime, 8 Ah or 12 Ah are recommended. It is also compatible with all Bosch dust extractors, GTA saw stands, and saw blades for cordless miter saws.
