Mitre saws & work benches

GCM 254 Professional

Mitre Saw

Order number 0.601.B52.0K0

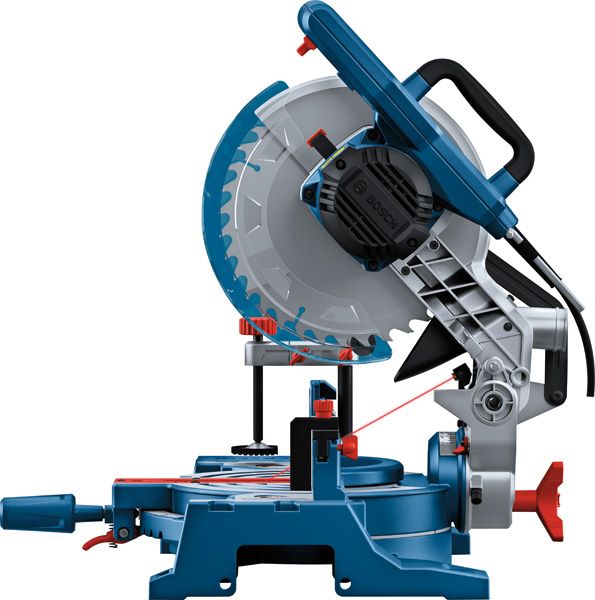

  • Accuracy for consistent cuts from the highly visible direct laser guide
  • More stable cutting thanks to the detachable box extension

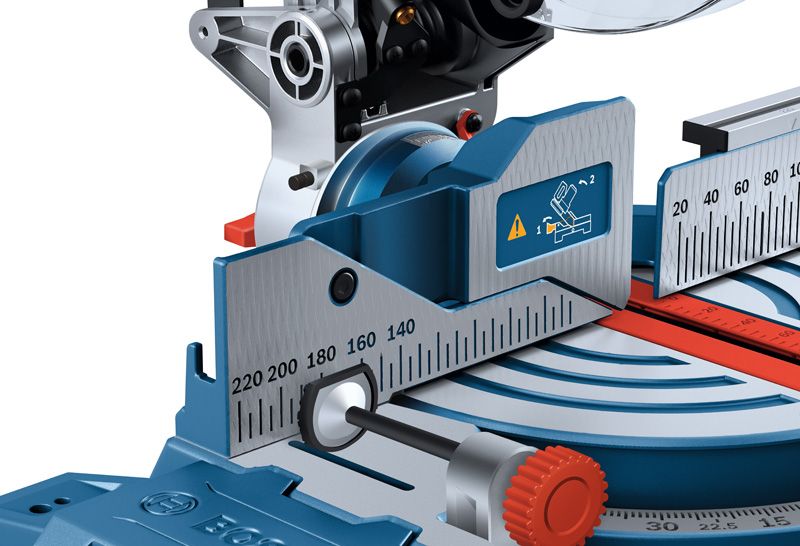

  • Length gauge ensures easier repetitive cuts
View more

14,395.00 PHP

Recommended retail price including VAT


GCM 254 Professional 0 601 B52 0K0

14,395.00 PHP

Recommended retail price including VAT

GCM 254 Professional

Your Selection

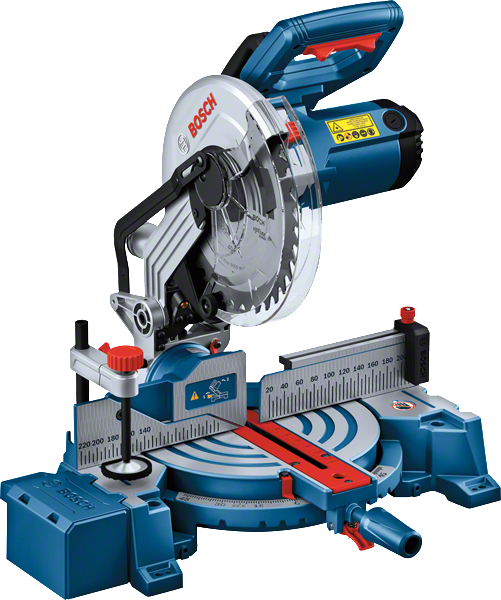

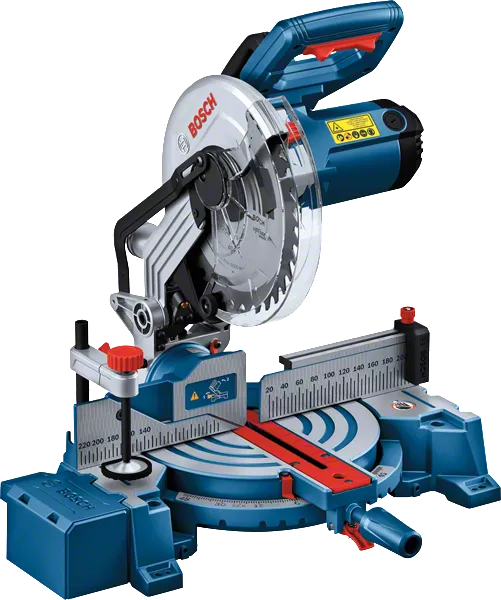

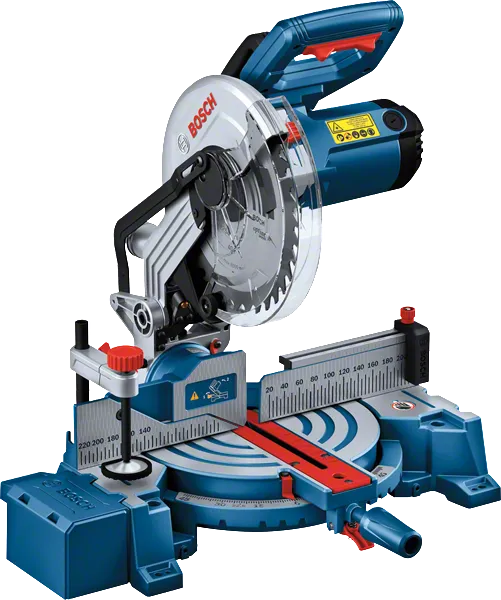

Bosch GCM 254 miter saw with precision cutting scale.

Order number: 0 601 B52 0K0

14,395.00 PHP

Recommended retail price including VAT

Find a local dealer

Included in this variant

  • 1 x circular saw blade, Expert for Wood, 254 x 2.5/1.8 x 25.4 mm, 40
    Order number: 2 608 643 001
  • Supporting box
    Order number: 1 619 PB9 050
  • Dust bag
    Order number: 1 619 PB6 246

Technical data

Additional data

Rated input power
1,750 W
Saw blade diameter
254 mm
Mitre setting
47 ° L / 52 ° R
Bevel setting
45 ° L / 0 ° R
Saw blade bore diameter
25.4 mm
Cutting capacity, 0°
90 x 130 mm
Cutting capacity, 45° mitre
90 x 91 mm
Cutting capacity, 45° bevel
60 x 130 mm
Tool dimensions (width x length x height)
477 x559 x567 mm
No-load speed
5,000 – 5,000 rpm
Weight
11.1 kg

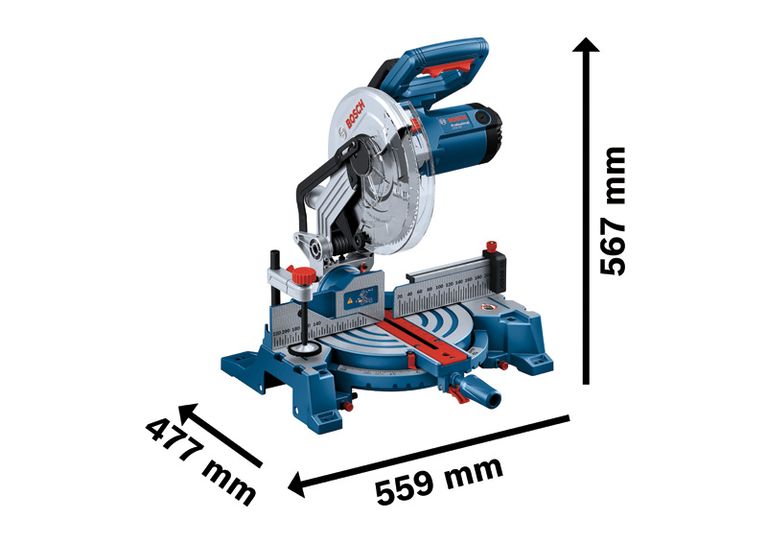

Bosch GCM 254 miter saw with dimensional measurements.

* You can find more information about the deviations in the following link: Technical features of products

GCM 254 Professional: Further information

Product Highlights

The GCM 254 Professional is designed for the ultimate in accuracy, ease of use and a long life. Precise and consistent cuts can be achieved with visible accuracy with the highly visible direct laser. Longer and larger material cuts can now be made with a higher level of stability and accuracy thanks to the detachable box extension and the same lengths cutting is supported by the length gauge.

Equipment & Application

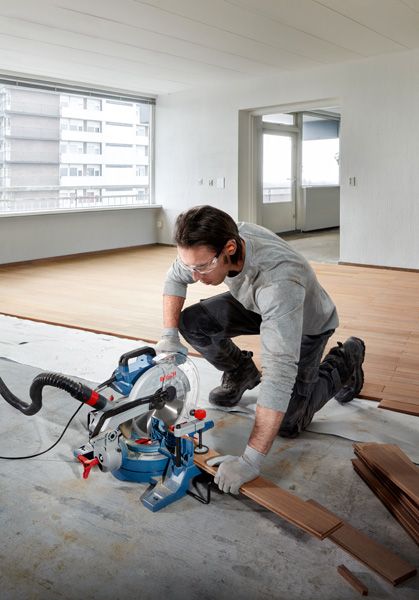

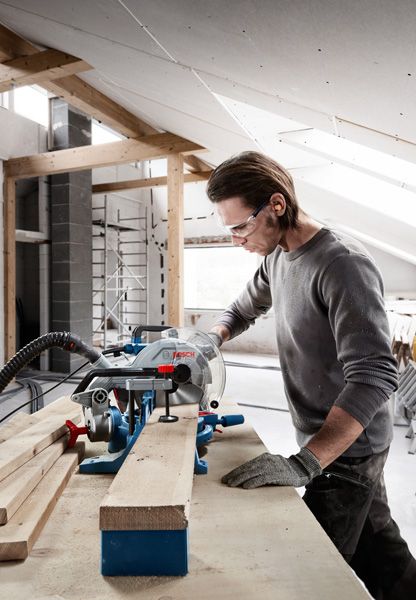

The GCM 254 miter saw is built for long-life with repetitive accurate cutting of wood and aluminum, and is ideal for carpenters, glaziers, roofers and other professional trades.
