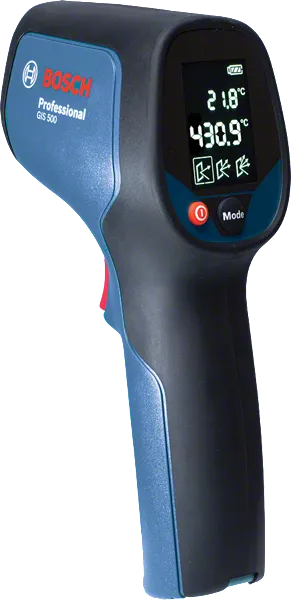

Thermo Detector
Your Selection
Currently not available online
Find a local dealer
Additional data |
|
---|---|
Measuring accuracy of IR | ± 1.8 °Cᵇ |
Laser diode | Laser class 2, 635 nm |
Power supply and runtime | 2 x 1.5V LR6 (AA) batteries 9h |
Weight | 0.22 kg |
Operating temperature | -5 – 50 °C |
Storage temperature | -20 – 70 °C |
Optics | 12:1 |
Measurement range | Surface temperature, -30 ⁰C to +500 ⁰C |
Measuring accuracy (typical) | Surface temperature, -30 ℃ ≤ t ≤ -10 ℃: ± (1.8 ℃ + 0.1 x |t| ℃), -10 ℃ < t < 0 ℃: ± 2.8 ℃, 0 ℃ ≤ t < 100 ℃: ±1.8 ℃, 100 ℃ ≤ t ≤ 500 ℃: ± 1.8% |
Measuring application | Spot temperature measurement |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵇ At >10°C, <100°C, for other surface temperatures, see
The measuring tool must not be used for human medical purposes.
