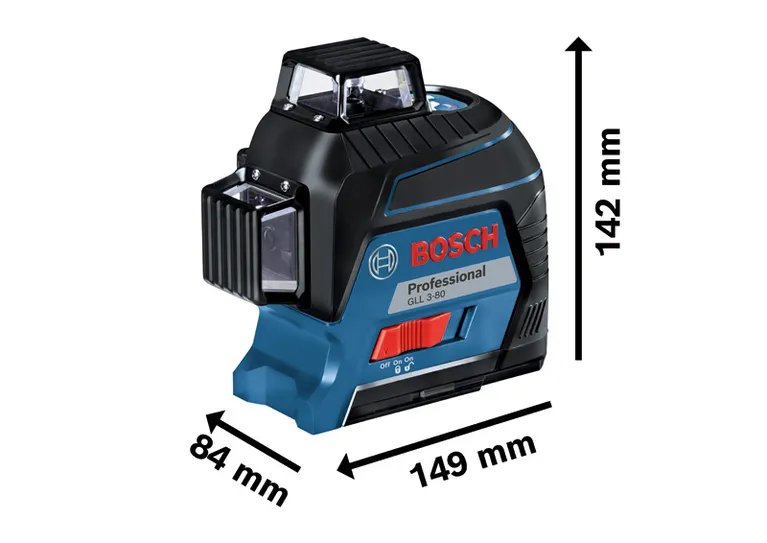

Line Laser GLL 3-80 Professional

3 x 360° for visibility on a new level

Technical data
Additional data
Working range* 30 m
Working range with receiver* 120 m
Accuracy* ± 0.2 mm/m
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature, from -10 °C
Operating temperature, up to 40 °C
Operating temperature -10 – 40°C °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70°C °C
Laser class 2
Working range with receiver, value 120 m
Working range without receiver, value 30 m
Working range without receiver 30 m
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 4 h in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.82 kg
Colour of laser line red

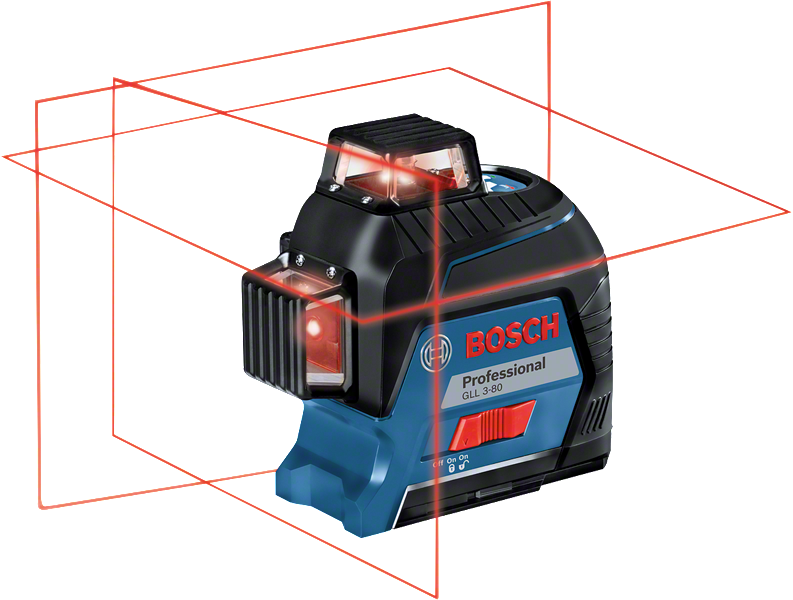

Projection 3 x 360° line

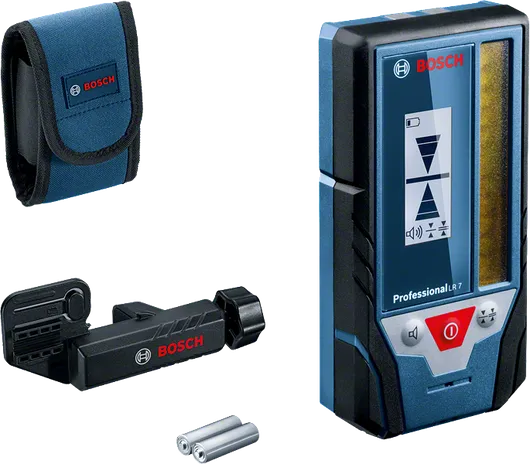

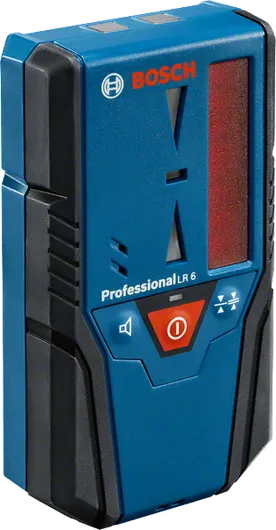

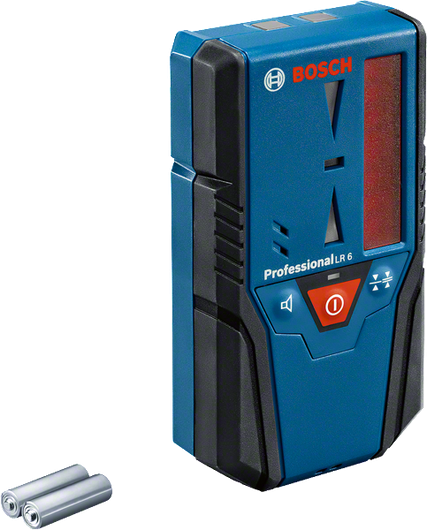

Compatible laser receivers LR 6 + 7

* Highlighted Data

Advantages

3 x 360° for visibility on a new level

  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
  • Intuitive user interface offers easy operation

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

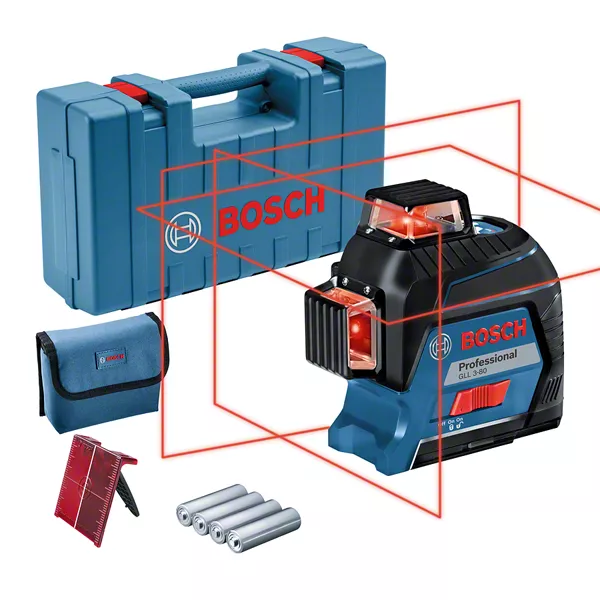

What’s Included in this Package
in carrying case with 4 x battery (AA), accessory set
in carrying case with 4 x battery (AA), accessory set
Order number: 0 601 063 S00
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
  • Pouch
  • Carrying case

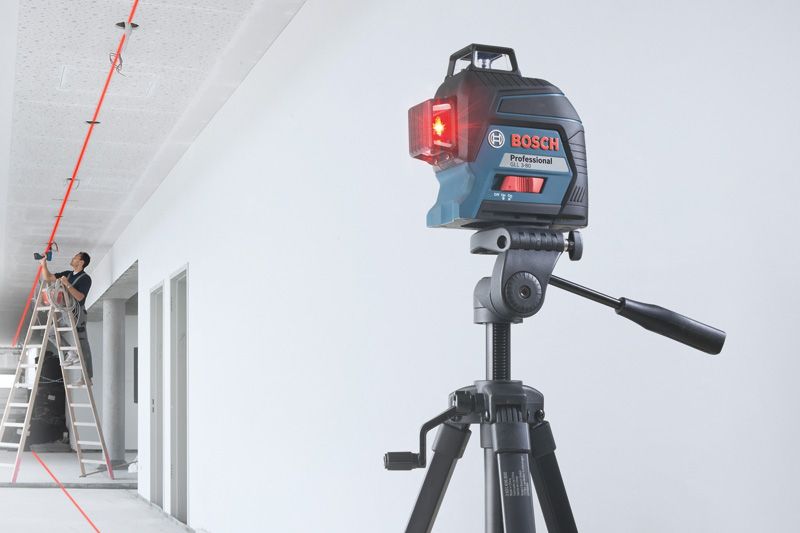

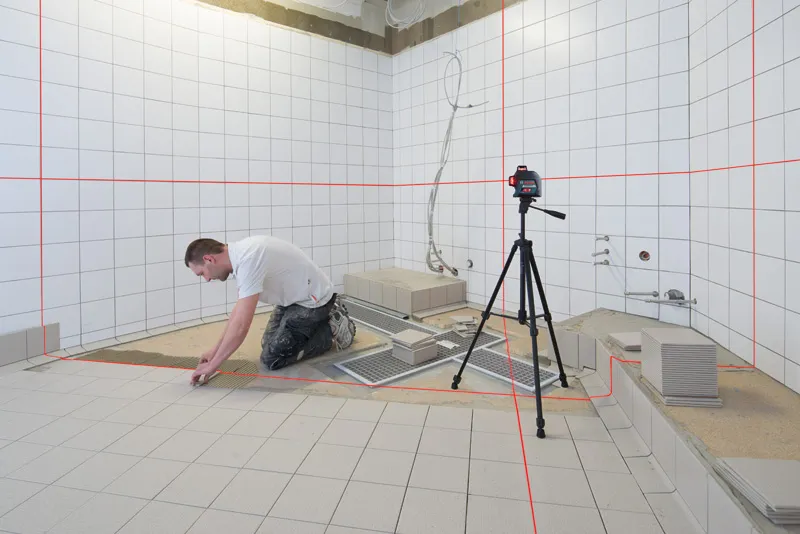

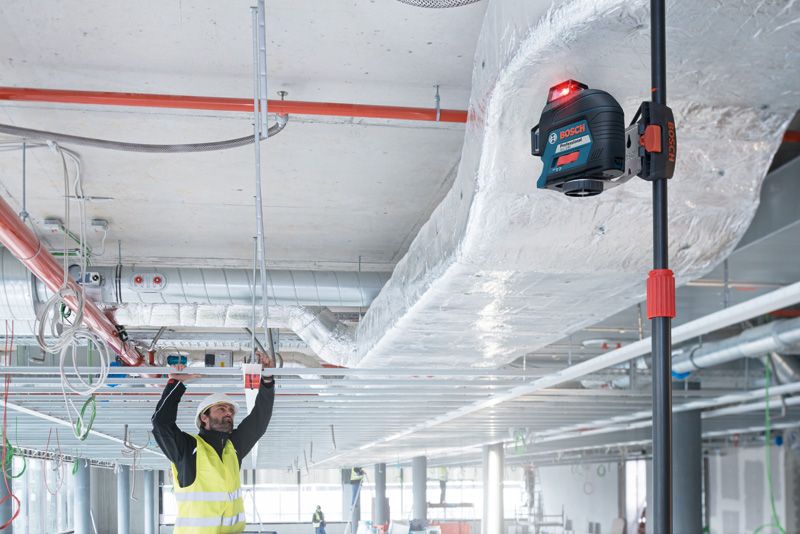

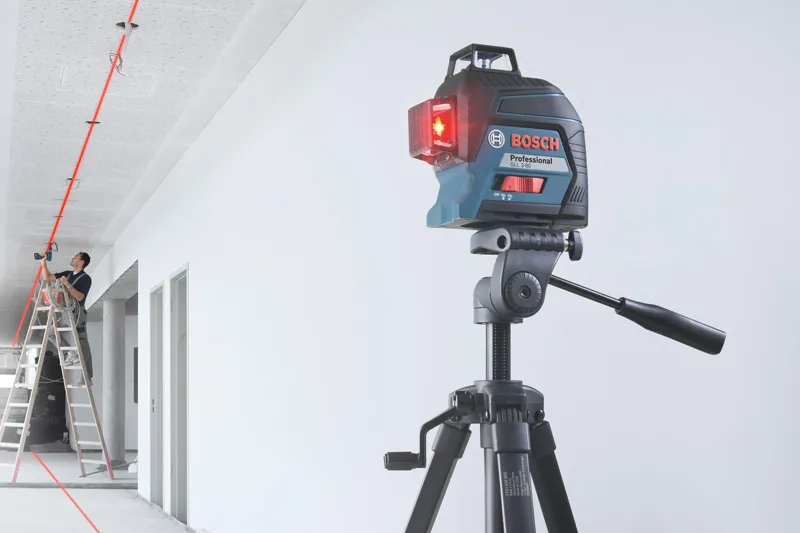

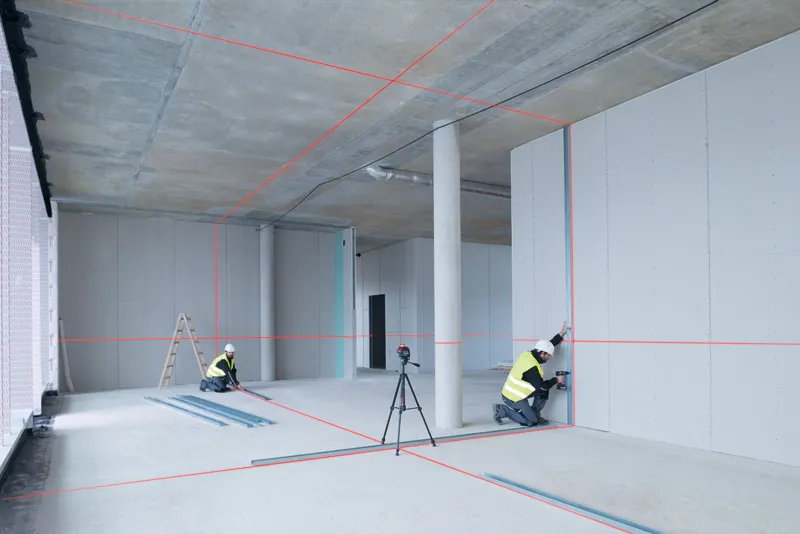

The GLL 3-80 in action!
