Laser measures

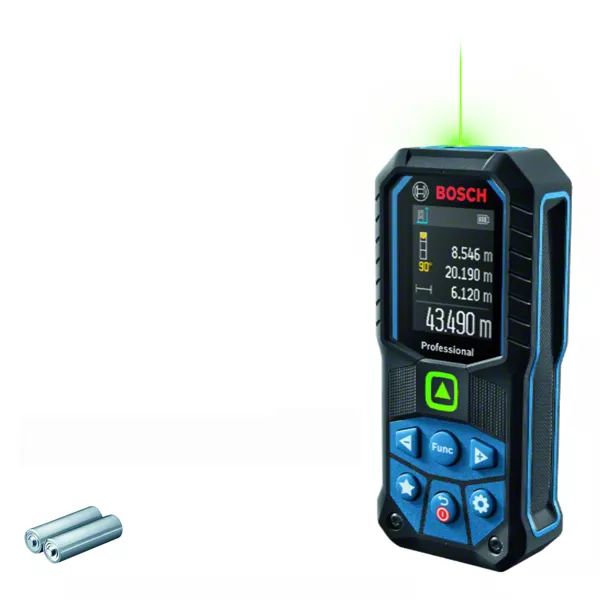

Bosch GLM50-23G laser measure with green beam display.

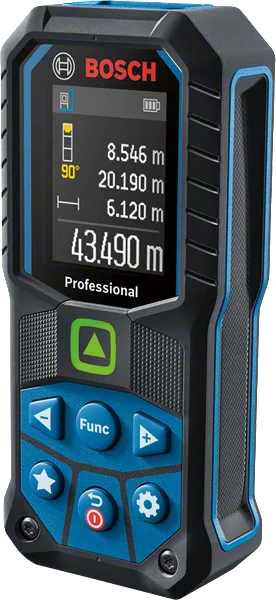

Bosch GLM 50-23 G laser measure with digital display.
GLM 50-23 G
GLM 50-23 G
-

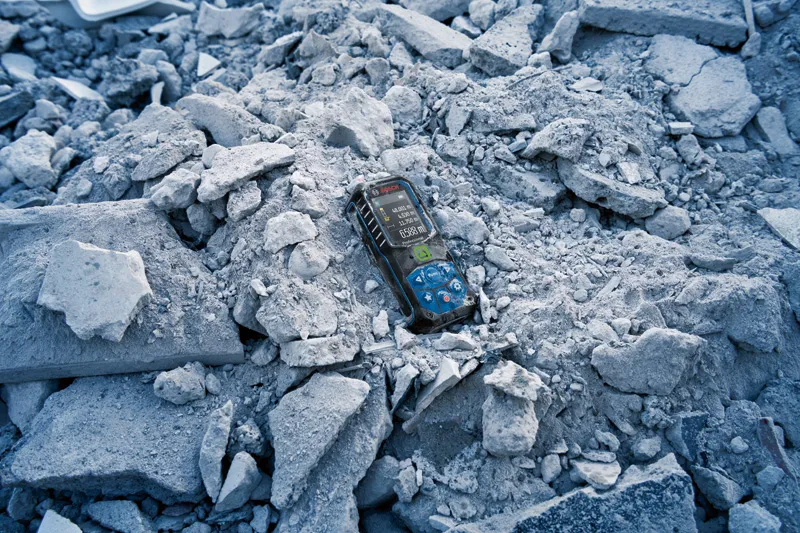

Laser measure device resting on a pile of broken concrete rubble.

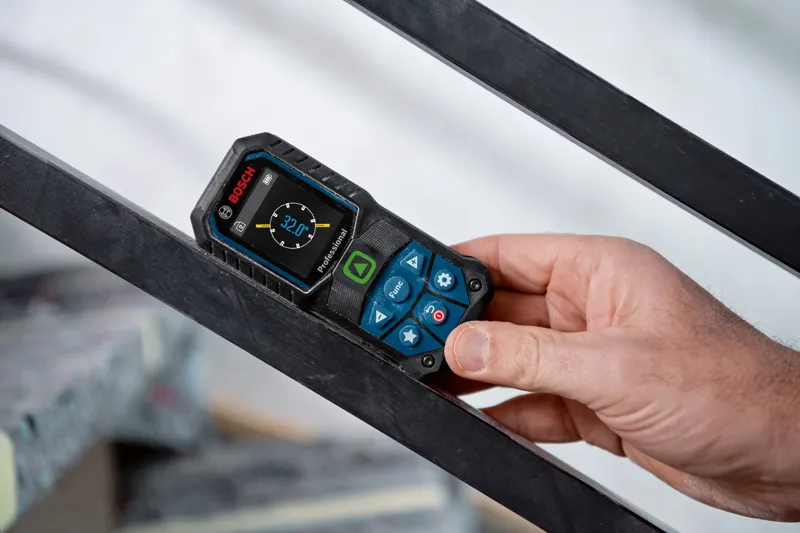

A person measures an angle on a metal beam using a laser measure.

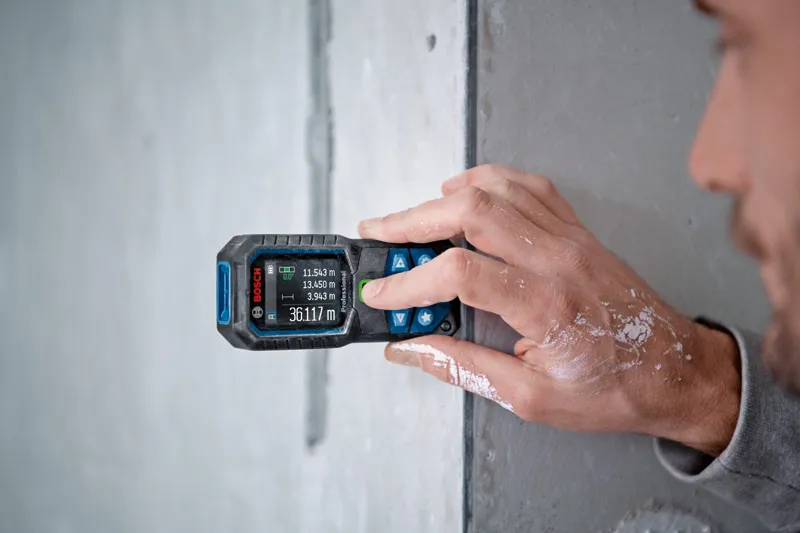

Person measuring wall distance with a laser measure, paint visible on their hand.

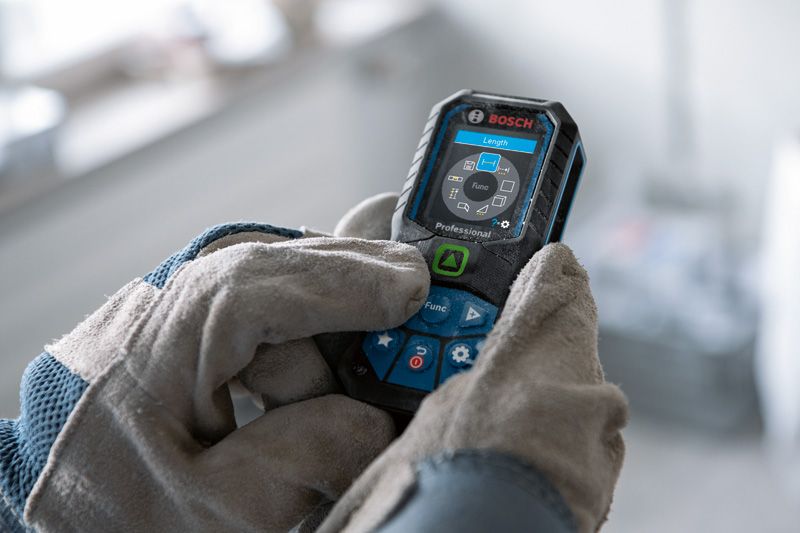

Person wearing safety equipment operates a laser measure with a digital display.

GLM 50-23 G Professional

Laser Measure

Green laser technology

Outstandingly robust: 2-in-1 laser measure with green laser for rough jobsites

  • Integrated 360° tilt sensor for easy angle / inclination measurement, an added versatility to the laser measure
  • Intuitive user interface with additional supportive features (favourite button, colour display, help function) makes handling convenient
  • Ideal for demanding jobsites thanks to IP 65 protection, and shock-absorbing rubber casing

Functions & key features

IP65 protection
Laser class 2

Your Selection

  • with Manufacturer’s certificate
Show variant
9,250.00 PHP
Recommended retail price including VAT
Find a local dealer

with Manufacturer’s certificate 0 601 072 VK0
9,250.00 PHP
Recommended retail price including VAT

GLM 50-23 G Professional

Your Selection

Bosch GLM50-23G laser measure with green beam display.
with Manufacturer’s certificate

Order number: 0 601 072 VK0

9,250.00 PHP
Recommended retail price including VAT
Find a local dealer

Included in this variant

  • Manufacturer’s certificate

Technical data

Additional data

Tripod thread
1/4"
Measurement time, typical
0.5 s
Units of measurement
m/cm, ft/inch
Laser diode
515 nm, < 1 mW
Measurement range
0.05 – 50.00 m
Laser class
2
Measurement accuracy, typical
± 1.5 mm s
Measurement range of incline measurement
0 – 360° (4 x 90°)
Measuring accuracy (typical)
± 0.2°
Measurement time, max.
4 s
Power supply
2 x 1.5 V LR6 (AA)
Automatic deactivation
5 min
Weight, approx.
0.2 kg
Memory capacity (values)
30
Dust and splash protection
IP 65
Laser colour
Green
Measuring range, up to
50 m
Bosch GLM 50-23 G laser measure with screen and buttons.

* You can find more information about the deviations in the following link: Technical features of products

GLM 50-23 G Professional: Further information

Product Highlights

The laser measure GLM 50-23 G Professional offers a highly durable design and green laser spot with integrated inclinometer. Thanks to the IP 65 protection-certified design and a shock-absorbing rubber casing, the tool is protected against jet water and ingress of dust. Intuitive handling is ensured by its smart user interface with many helpful features such as a high-end colour display, a handy help function and a dedicated favourite shortcut button.

Equipment & Application

Being able to calculate material needs, room and wall areas, it is the ideal choice for architects, electricians, and many other professionals.

Additional Information

It comes with a dedicated favourite shortcut button. Users can then instantly access the preset measuring function by simply pressing the favourite button without the need to scroll through the HMI.
