Point lasers

GPL 3 G Professional

Point Laser

GPL 3 G
GPL 3 G

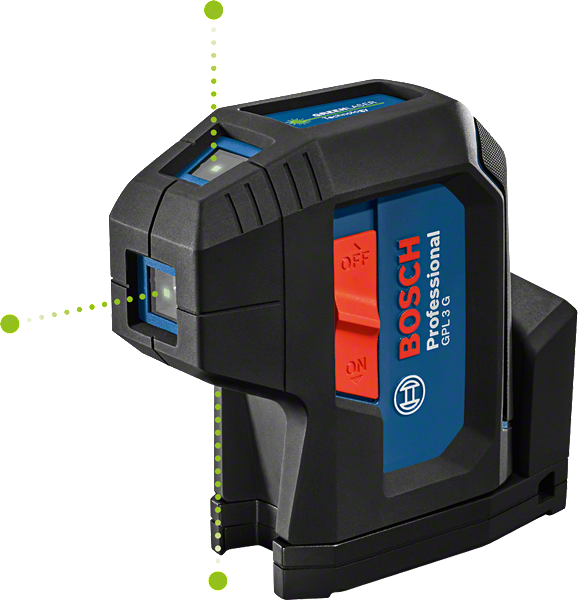

The robust and compact 3-point laser with highly visible green laser points

  • Green laser points provide up to four times better visibility than red points
  • Durable design for tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
  • Integrated rotation mount with strong magnets for fast and secure mounting

Functions & key features

Line configuration 3-Point laser
IP65 dust tight and water jets protection
Integrated rotation mount
Magnets
Laser class 2

Your Selection

  • with 2 x battery (AA), Pouch
Show variant
10,370.00 PHP
Recommended retail price including VAT

Currently not available online

Find a local dealer

with 2 x battery (AA), Pouch 0 601 066 N00
10,370.00 PHP
Recommended retail price including VAT

GPL 3 G Professional

Your Selection

GPL 3 G
with 2 x battery (AA), Pouch

Order number: 0 601 066 N00

10,370.00 PHP
Recommended retail price including VAT
Find a local dealer

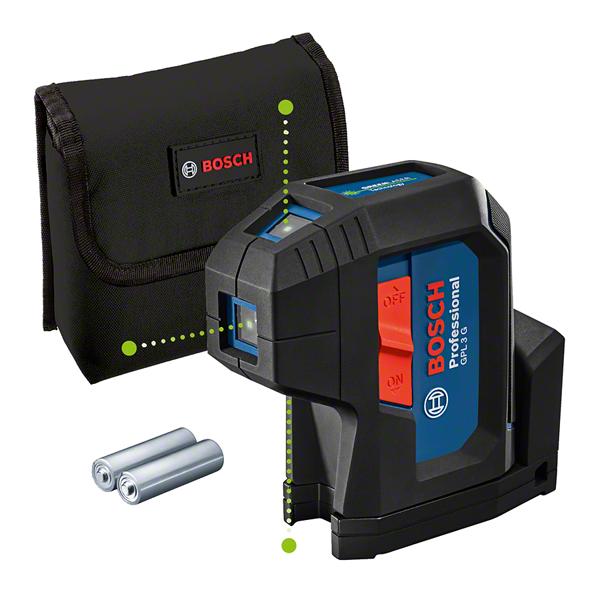

Included in this variant

  • Pouch
  • 2 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Dust and splash protectionnull IP 65
Working rangenull up to 30 m
Accuracynull ± 0.35 mm/m* (except bottom laser point) ; ± 0.7 mm/m* (bottom laser point) (*plus use-dependent deviation)
Projectionnull 3 points
Working range, valuenull 30 m
Laser diodenull < 1 mW, 500 – 540 nm
Operating temperaturenull -10 – 45 °C
Storage temperaturenull -20 – 70 °C
Laser classnull 2
Self-levelling rangenull ± 4°
Levelling timenull 4 s
Power supplynull 2 x 1.5 V LR6 (AA)
Operating time (max.)null 8 h
Tripod threadnull 1/4"

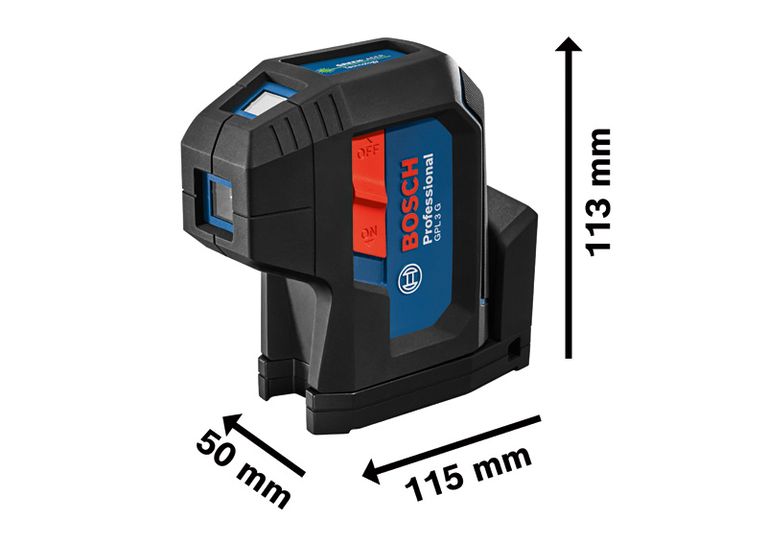

Weight, approx.null 0.35 kg
GPL 3 G

GPL 3 G Professional: Further information

Product Highlights

The 3-point laser GPL 3 G Professional is resilient and small in design, making it ideal for drywalling. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 3 G Professional also resists tough jobsite conditions. This 3-point laser is equipped with an integrated rotation mount that features strong magnets for fast and secure tool mounting while also enabling convenient transportation.

Equipment & Application

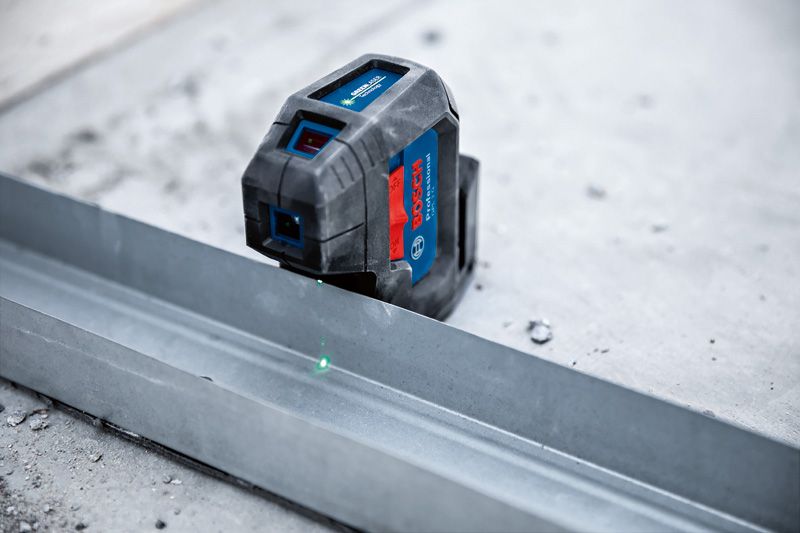

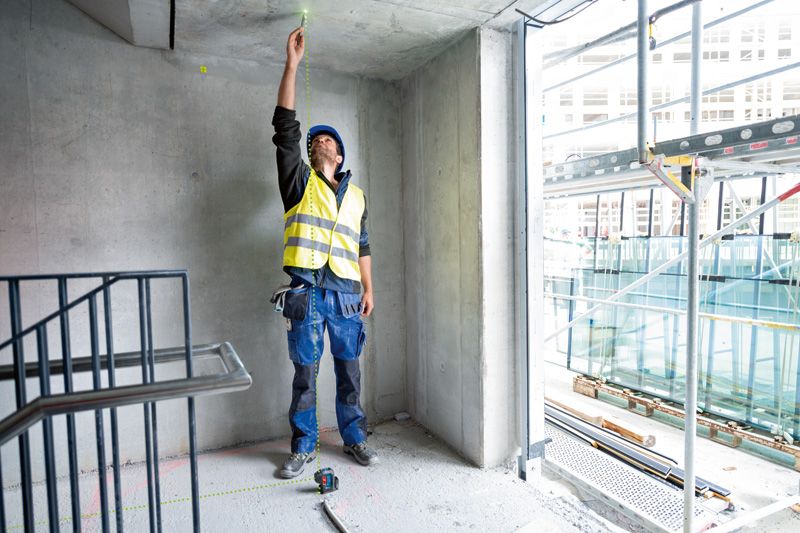

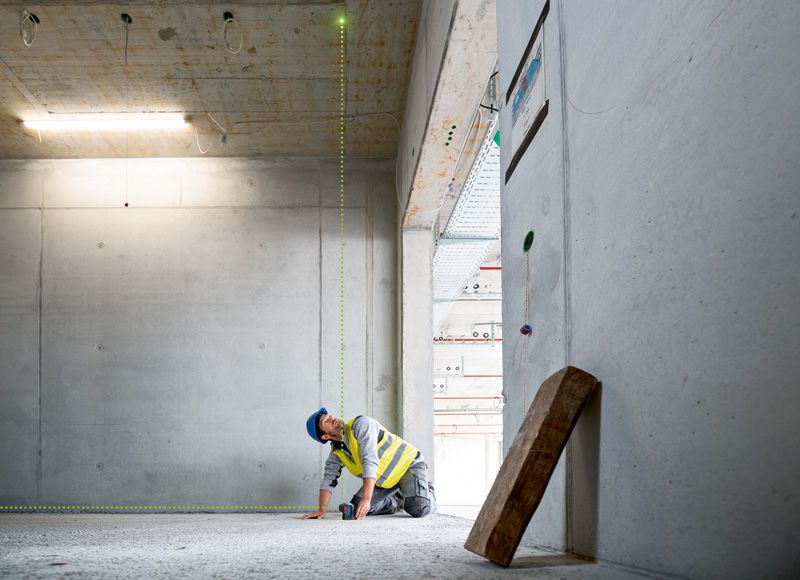

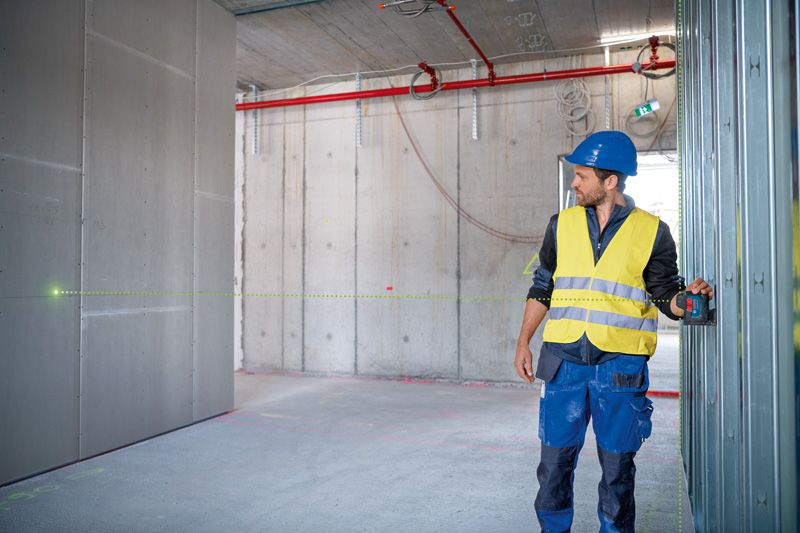

The GPL 3 G Professional is the ideal helper for transferring points from floor to ceiling, e.g., when installing interior lighting. It is perfectly shaped for stud alignment for drywall framework.

Additional Information

This 3-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked.
