Point lasers
GPL 5 G
GPL 5 G

GPL 5 G Professional

Point Laser

GPL 5 G
GPL 5 G

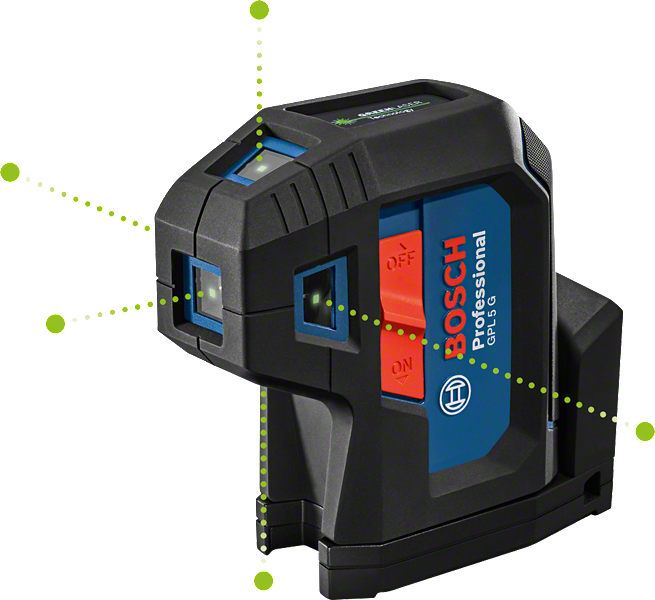

The tough and compact 5-point laser with highly visible green laser points

  • Green laser points provide up to four times better visibility than red points
  • Durable design resists tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
  • Fast and secure mounting thanks to integrated rotation mount with strong magnets

Functions & key features

Line configuration 5-Point laser
IP65 dust tight and water jets protection
Integrated rotation mount
Magnets
Laser class 2

Your Selection

  • with 2 x battery (AA), Pouch
Show variant
12,300.00 PHP Recommended retail price including VAT

Currently not available online

Check availability on location
Find a local dealer
with 2 x battery (AA), Pouch 0 601 066 P00
12,300.00 PHP Recommended retail price including VAT
Find a local dealer

GPL 5 G Professional

Your Selection

with 2 x battery (AA), Pouch

Order number: 0 601 066 P00

12,300.00 PHP

Recommended retail price including VAT

Find a local dealer

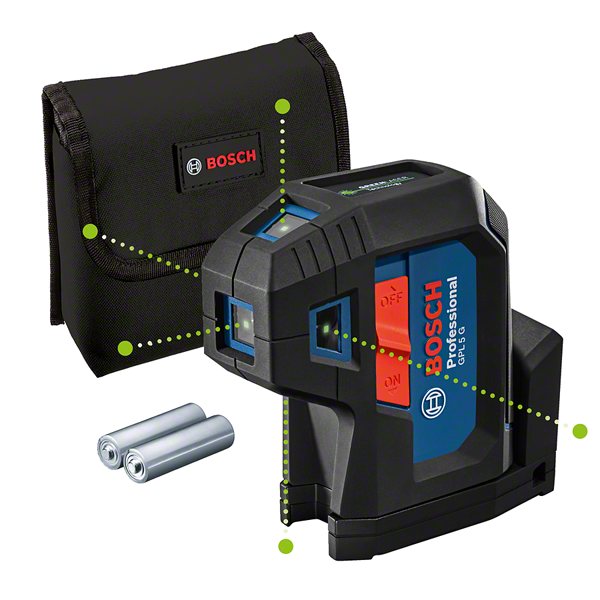

Included in this variant

  • Pouch
  • 2 x 1.5 V LR6 battery (AA)
Your selection

Technical data

Additional data
Dust and splash protection IP 65
Working range up to 30 m
Accuracy ± 0.35 mm/m* (except bottom laser point) ; ± 0,7 mm/m* (bottom laser point) (*plus use-dependent deviation)
Projection 5 points
Working range, value 30 m
Laser diode < 1 mW, 500 – 540 nm
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Laser class 2
Self-levelling range ± 4°
Levelling time 4 s
Power supply 2 x 1.5 V LR6 (AA)
Operating time (max.) 8 h
Tripod thread 1/4"
Weight, approx. 0.35 kg

GPL 5 G Professional: Further information

Product Highlights

The 5-point laser GPL 5 G Professional stands out with its durable and compact design, making it the ideal choice for laying out 90-degree walls. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 5 G Professional resists tough jobsite conditions. This 5-point laser is transport-ready in no time, thanks to an integrated rotation mount that features strong magnets for fast and secure tool mounting.

Equipment & Application

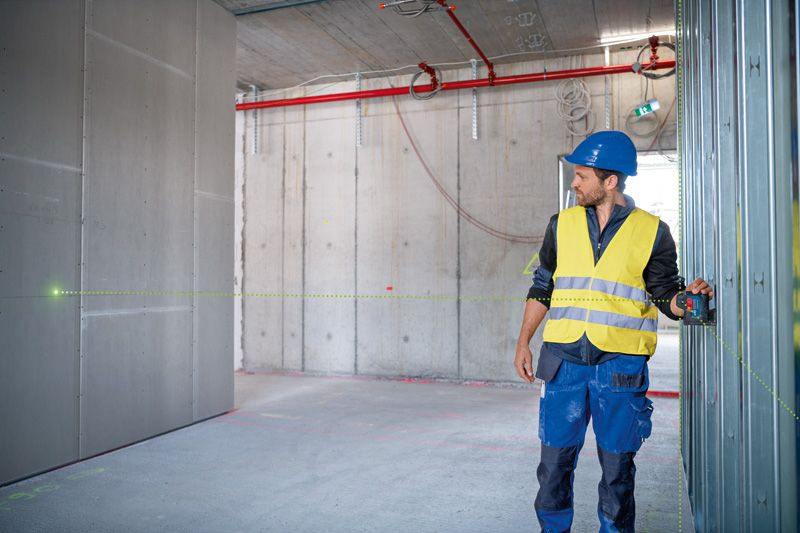

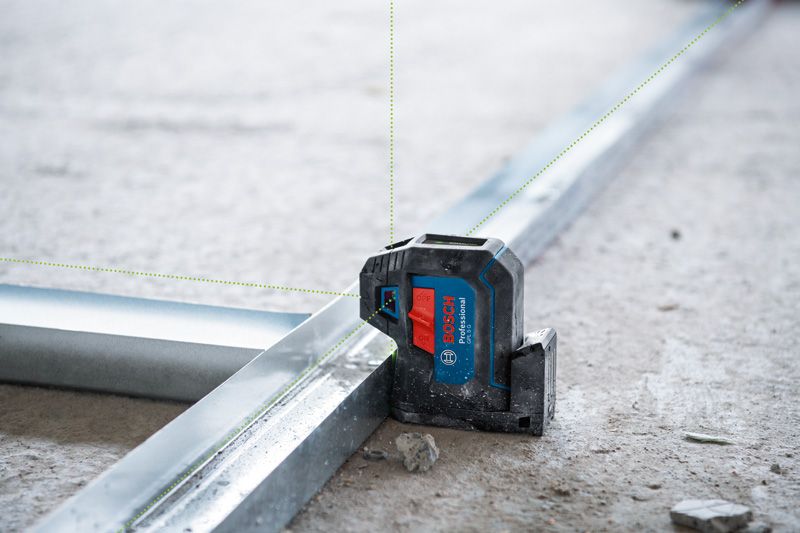

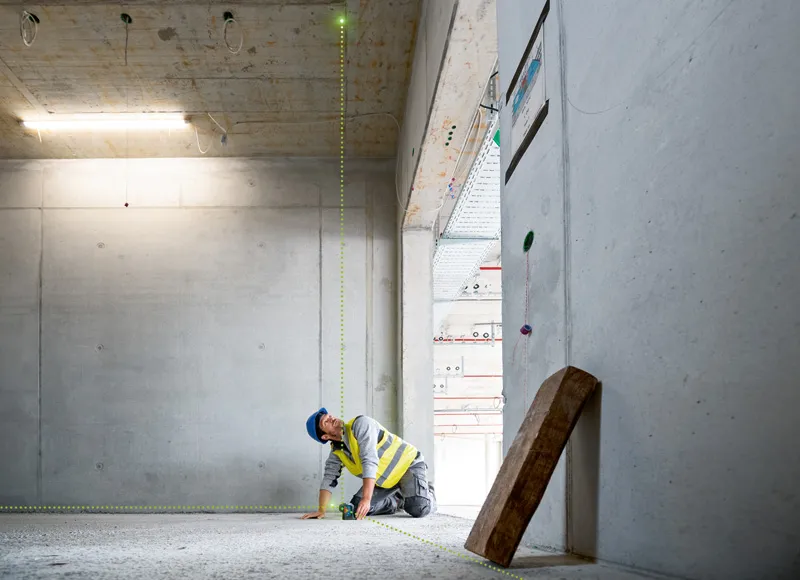

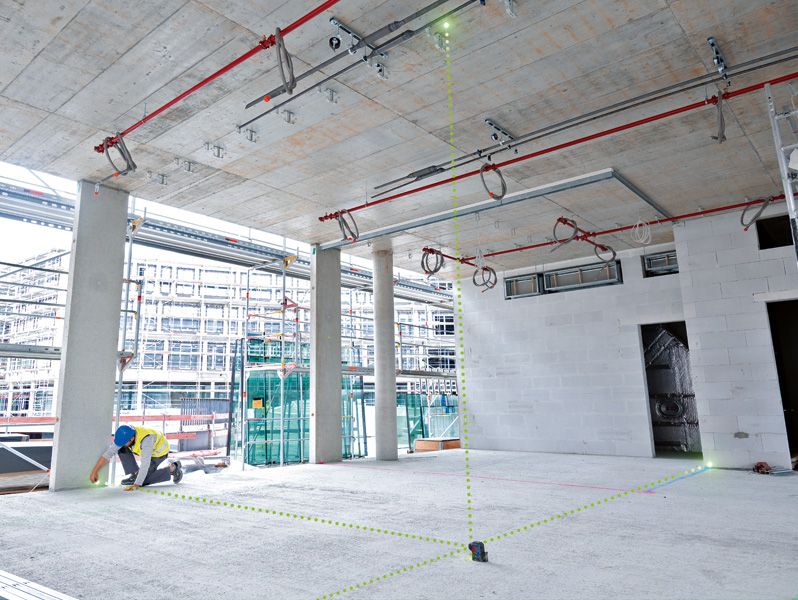

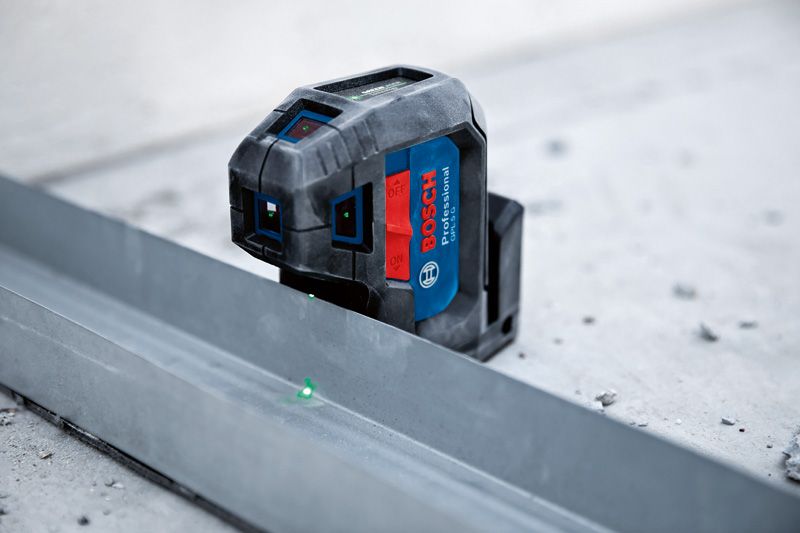

The GPL 5 G Professional is ideal for room partitioning with 90-degree angles and for transferring points from floor to ceiling. It is very suitable for jobs like plumbing and building frames for drywalls.

Additional Information

This 5-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked.

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601K66P00

Product name

GPL 5 G

Description

Point Laser

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GPL 5 G | GPL 3 G (PDF 6.6 MB)
