Cordless impact drills

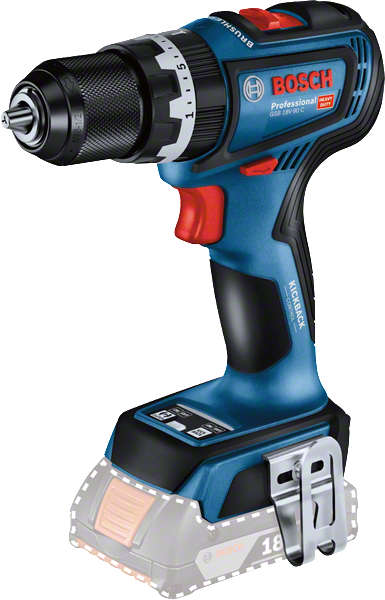

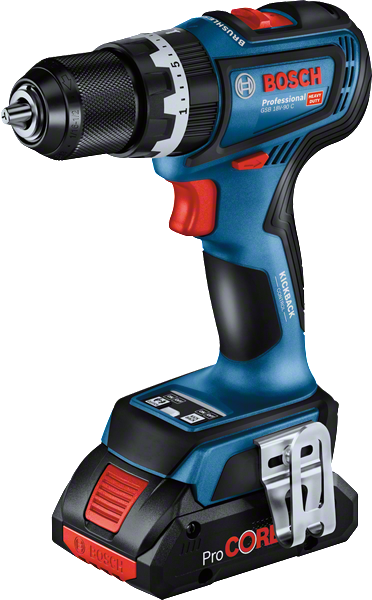

GSB 18V-90 C Professional

Name: GSB 18V-90 C
Brand: Bosch power tools
SKU: 06019K61L0
Availability: InStock

Cordless Combi

Powerful cordless impact drill with compact head length and perfect tool control

Powerful brushless motor delivers high power with 64 Nm and 2,100 rpm maximising your efficiency on the job site
13-mm metal chuck ensures increased robustness and great torque transfer for every job
Switchable Kickback Control and switchable Precision Clutch ensure perfect control and high protection for user and tool

Functions & key features

Your Selection

in cardboard box

Show variant

Currently not available online

Check availability on location

Find a local dealer

Your Selected Variant

in cardboard box 0 601 9K6 1L0

Find a local dealer

GSB 18V-90 C Professional

Your Selection

in cardboard box

Order number: 0 601 9K6 1L0

Find a local dealer

Included in this variant

Cardboard box

Your selection

Technical data

Additional data
Torque (soft/hard/max.)	36/64/- Nm
No-load speed (1st gear / 2nd gear)	0 – 630 / 0 – 2,100 rpm
Battery voltage	18.0 V
Weight incl. battery	1.2 kg
Chuck capacity, min./max.	1.5 / 13 mm
Weight excl. battery	1.2 kg
Torque settings	21

Drilling diameter
Max. drilling diameter in wood	68 mm
Max. drilling diameter in steel	13 mm

Screw diameter
Max. screw diameter	12 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	1.5 m/s²
Uncertainty K	1.2 m/s²

Total vibration values (Impact drilling in masonry)
Vibration emission value ah	11.8 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	99 dB(A)
Sound power level	88 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	1.5 m/s²
Uncertainty K	1.2 m/s²

Impact drilling in masonry
Vibration emission value ah	11.8 m/s²
Uncertainty K	1.5 m/s²

GSB 18V-90 C Professional: Further information

Product Highlights

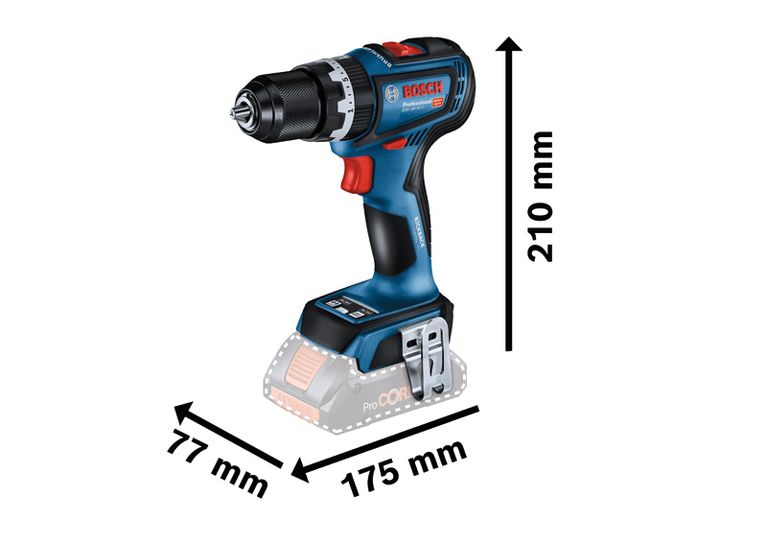

The GSB 18V-90 C Professional is a powerful cordless impact drill with a brushless motor that delivers top performance with 64 Nm and 2,100 rpm. Its compact head length of 175 mm provides perfect tool handiness. The robust 13-mm metal chuck ensures great torque transfer for every job. The impact drill holds a very high level of tool control for both, increased user health and tool protection: The HMI offers switchable Kickback Control to reduce the risk of sudden rotational torque reaction in a bind-up scenario. A switchable Precision Clutch stops the overriding once a preset torque level is reached and, thus, reduces the wear and tear of the clutch and the resulting noise.

Equipment & Application

The tool is intended for drilling in wood with a maximum diameter of 68 mm and in steel and masonry with up to 13 mm each. The GSB 18V-90 C Professional is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System).

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
