Thermo cameras & detectors

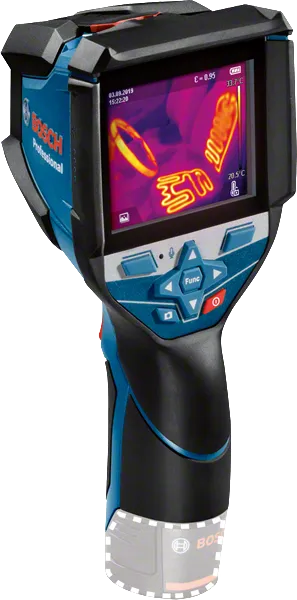

GTC 600 C Professional

Thermo Camera

GTC 600 C
GTC 600 C
GTC 600 C

Detailed visualisation of temperature differences with smart documentation

  • High thermal resolution and wide measuring range for maximum applications
  • Voice note and Bosch ThermalOn app enable easy documentation of thermal images
  • Intuitive user interface and seamlessly integrated features deliver successful results in minimum clicks

Functions & key features

 Compatible since 2005: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.

Your Selection

  • in carrying bag with Manufacturer’s certificate
Show variant
108,000.00 PHP
Recommended retail price including VAT

Currently not available online

Find a local dealer

in carrying bag with Manufacturer’s certificate 0 601 083 5K0
108,000.00 PHP
Recommended retail price including VAT

GTC 600 C Professional

Your Selection

GTC 600 C
in carrying bag with Manufacturer’s certificate

Order number: 0 601 083 5K0

108,000.00 PHP
Recommended retail price including VAT
Find a local dealer

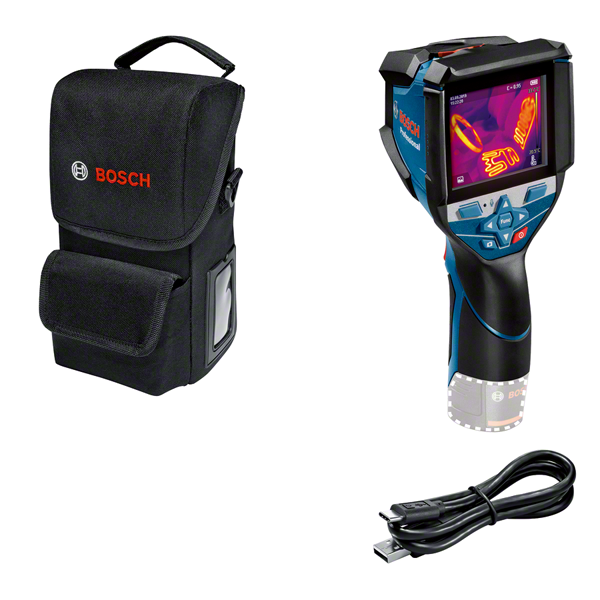

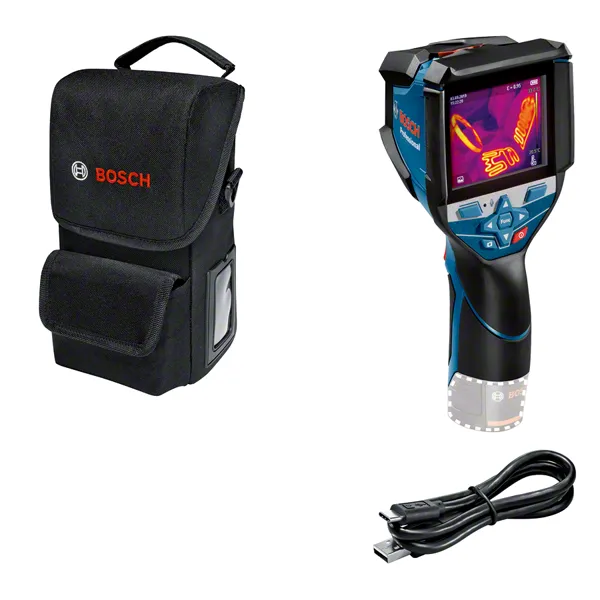

Included in this variant

  • USB-C™ Cable
  • Manufacturer’s certificate
  • Carrying bag

Technical data

Additional data

Data transfer Wi-Fi, USB-C®
Measurement range -20 °C to +600 °C
Measuring accuracy of IR ± 2.0 °Cᵇ
Thermal sensitivity (NETD) <=50 mK
Battery voltage 12.0 V
Resolution 0.1 °C
Size of IR sensor 256x192 px
Number of measuring points 49,152
Power supply and runtime GBA 12 V 2.0 Ah 6 hours
Frame buffer (number of images) 600
File format of image .jpg
Shock protection 2 m
Dust and splash protection IP54** (**except for the lithium-ion battery pack)
Weight 0.6 kg
Size of display 3,5"
Operating temperature -10 – 45 °C
Storage temperature -20 – 50 °C
Focus distance, minimum 0.3 m
Thermal image refresh rate 9 Hz
Frame buffer (number of images each with audio) 350
File format of audio .wav
Measuring application Thermal image

GTC 600 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵇ At >10°C, <100°C, for other surface temperatures, see User Manual

GTC 600 C Professional: Further information

Product Highlights

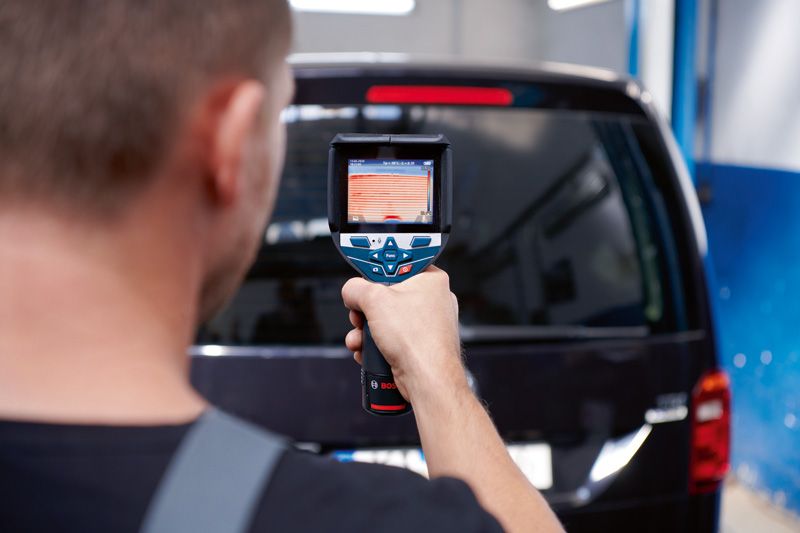

Detect temperature differences quickly and easily, even outdoors – Bosch´s thermal camera GTC 600 C Professional offers detailed visualisations of temperature differences and allows for smart documentation. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch ThermalOn app and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.

Equipment & Application

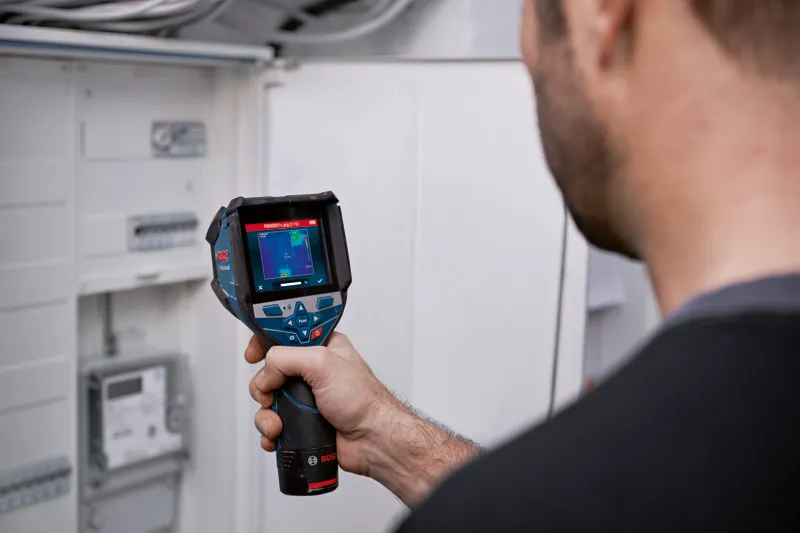

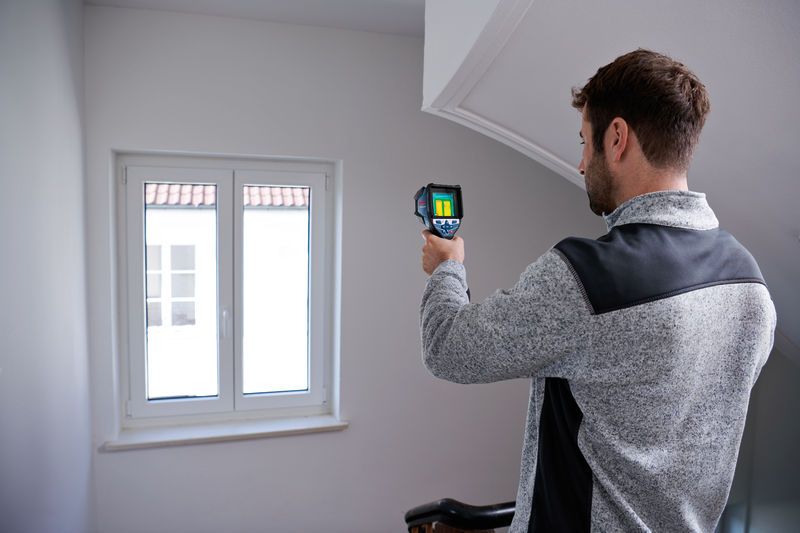

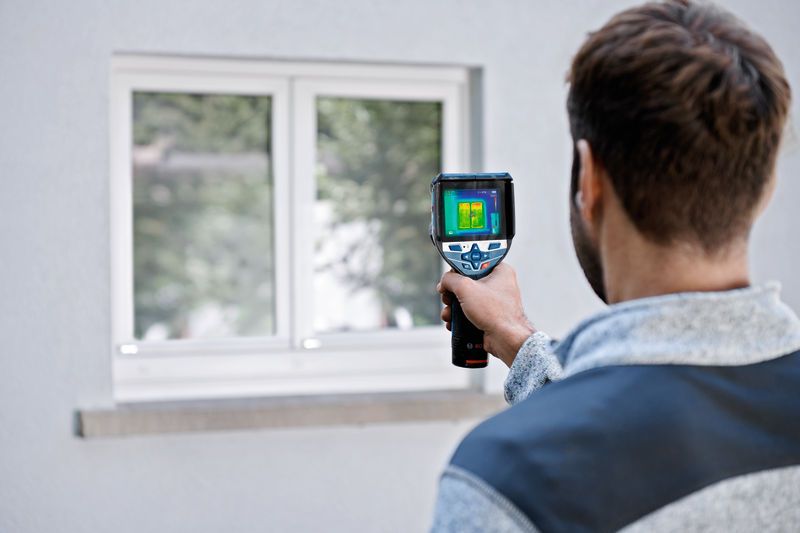

This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Additional Information

The robust GTC 600 C can withstand falling from a height of 2 m, has a protection class of IP54, and can be used on jobsites even under the toughest conditions. Additionally, its 12V Li-ion batteries give the tool an outstanding runtime. Documenting and sharing measured values is easy with the corresponding Bosch app thanks to its Simple Exchange functionality for transferring data. This thermal camera has a high accuracy of ±2.0°C* and a wide temperature range of -20°C to +600°C.
